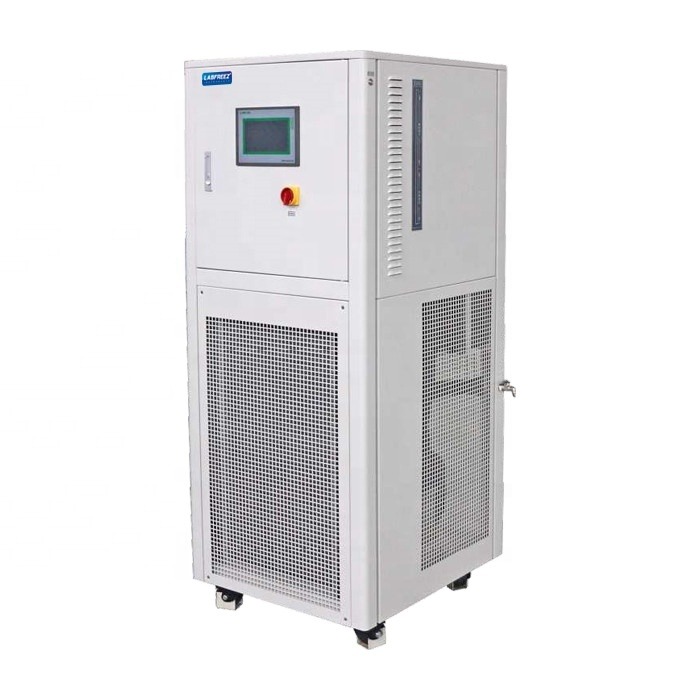

Other -25C Closed Recirculating Chiller, Water Cooling Circulator

Model

LRC-0250N

LRC-0400N

LRC-0700N

LRC-1000N

LRC-1450N

LRC-2000N

Medium Temperature Range

-15℃~30℃

-25℃~30℃

-25℃~30℃

-25℃~30℃

-25℃~30℃

-25℃~30℃

Temp. control

ASET multifunctional controller

Temp. control optional

Heat-conducting medium outlet temp. control

communication protocol

MODBUS RTU Protocol, RS 485 Interface

Temp. feedback

Heat-conducting medium temperature feedback PT100

Cooling capacity

0℃

1.5kW

2.4kW

4kW

7.5kW

10kW

15.5kW

-10℃

1kW

1.5kW

2.7kW

6.3kW

8kW

12kW

-20℃

0.55kW

0.8kW

1.5kW

3.5kW

5kW

7.3kW

Circulation pump

Max20L/min
0.7BAR

Max20L/min
0.7BAR

Max35L/min
1BAR

Max50L/min
1BAR

Max75L/min
1BAR

Max75L/min
1BAR

capacity of liquid storage

15L

25L

30L

35L

45L

60L

Compressor

Tecumseh

Tecumseh

Copeland

Copeland

Copeland

Copeland

Evaporator

copper tube

Operating controller

7-inch color touch screen, temperature curve record, excel-format export

Security protection

Self-diagnosis function; freezer overload protection; high pressure switch;
overload relay, thermal protection device etc. security protection function.

Refrigerants

R-404A

Connection size

DN-15

DN20

DN20

DN20

DN20

DN-20

Product size (air-cooled)

400*600*1050

400*600*1150

500*680*1350

550*680*1450

620*680*1550

750*750*1750

Weight (air-cooled)

115KG

145kg

180kg

225kg

290kg

340kg

Power

AC220V 50HZ
1.5kW (max)

AC220V 50HZ
2.2kW (max)

AC220V50HZ
3.5kW (max)

AC380V 50HZ
4kW (max)

AC380V 50HZ
5kW (max)

AC380V50HZ
6.5kW (max)

Material

Cold rolled steel

Optional

Circulation Pump Optional: 35L/min 2.5bar 50L/min 2.5bar 110L/min 2.5bar

Optional

SUS304 material

Optional

Pressure max. 10 bar circulating pump

Optional Power

220V 60HZ three-phases, 440V~480V 60HZ three-phases

Remark

Can make the bigger capacity of water storage as required.
