Home /Products/Laser Water Chiller/High Efficiency Energy Saving/Digital Display Bluetimes S&A CW5200 130w 150w CO2 Laser Tube Industrial Cooling Refrigerator

High Efficiency Energy Saving/Digital Display Bluetimes S&A CW5200 130w 150w CO2 Laser Tube Industrial Cooling Refrigerator

1 Piece
MOQ
High Efficiency Energy Saving/Digital Display Bluetimes S&A CW5200 130w 150w CO2 Laser Tube Industrial Cooling Refrigerator
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Advertising Company
Showroom Location: UAE
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2022
Warranty Of Core Components: 2 Years
Core Components: Pump, Heater, High Efficiency Compressor, Water Fill Port, Control Panel, Water Level Indicator, Dust-proof Filter
Condition: New
Type: Water-cooled
Voltage: 110V/220V, 110/220V
Dimension(L*W*H): 70*43*58cm
Weight: 40 KG
Warranty: 2 Years
Key Selling Points: Accurate Temperature Control
Temperature Range: 5°C ~35°C
Temperature Precision: ±0.3°C
Application: Laser Tube Cooling
Cooling Capacity: 0.89KW~1.08KW
Frequency: 50/60Hz
Cooling Type: Chilled Cooling Water
Product Name: Industrial Chiller For CO2 Glass Laser Tube
Feature: High Efficiency Saving Energy/Digital Temperature Display
After Warranty Service:: Engineers Available For Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Carton box packing. Fast Delivery period. Any confusion engineers can answer online within 24 hour.
Product Description

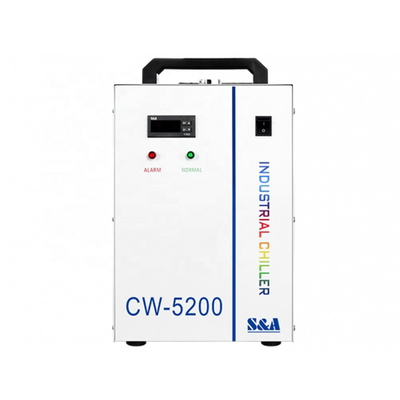

Bluetimes S&A CW5200 130w 150w co2 laser tube industrial cooling chiller
BlueTimes S&A Industrial Water Chiller industrial water cooler110/220V For CO2 Engraving Cutting Cooling System
Cooling Capacity up to 3.15KW Co2 Laser Chiller industrial chiller water cooled
CW3000/CW5000/CW5200/CW6000 industrial Chiller
Products Description

POWERFUL COOLING: Sunlite S&A CW3000/CW5000/CW5200/CW6000 industrial Chiller uses standard R410a refrigerant to keep laser cutting and engraving machines up to 150W nice and cool during use; its 2.6 GPM flow rate and 0.9hp compressor can cool up to 5186 BTU per hour
CAPACIOUS TANK: The 1.6-gallon (6L) Industrial Water Chiller water tank is enclosed to reduce evaporation and provide long-term service between refills; the clear observation window lets you know when it's time to top off
HIGH-GRADE PORTS: Our Industrial Water Chiller's inlet and outlet ports are made of premium brass for long-term corrosion-free performance; their careful design prevents any issues with leaks as it operates
SAFE OPERATION: This Laser Tube Industrial Water Chiller includes internal sensors to keep temperatures within 0.3℃ of constant and to let you know via digital display, indicator lights, and alarms when everything's going smoothly and when it's time to make adjustments
SATISFACTION GUARANTEED: BlueTime's Industrial Water Chiller Strong warranty and friendly 24/7 customer service let you order with confidence that this Co2 Laser Chiller industrial will meet all your cooling needs for your CO2 laser Engraving Cutting machine.
Model
CW3000DG
CW3000TG
CW5000DG
CW5000TG
CW5200DH
CW5200TH
CW6000AH
CW6000DH
Voltage
AC 1P 110V
AC 1P 220V
AC 1P 110V
AC 1P 220V
AC 1P 110V
AC 1P 220V
AC 1P 220V
AC 1P 110V
Frequency
50/60Hz
50/60Hz
60Hz
50/60Hz
60Hz
50/60Hz
50Hz
60Hz
Current
0.4~0.9A
0.4~1A
0.4~5.3A
0.4~3.1A
0.5~8.9A
0. 5~4.6A
0.3~6.3A
0.45~14.7A
Machine power
0.10kW
0.43kW
0.44/0.46kW
0.77kW
0.74/0.82kW
1.2kW
1.6kW
Radiating capacity
50W/℃
/
/
/
/
/
/
Compressor power
/
/
0.38kW
0.37/0.39kW
0.66kW
0.6/0.62kW
1.06kW
1.12kW
Nominal cooling capacity
/
/
1.03 kW
0.89/1.08 kW
1.67kW
1.77/2.14kW
3.14kW
3.15kW
Pump power
/
/
0.03kW
0.05kW
0.05kW
Max. lift
10M
10M
12M
12M
Max. flow
10L/min
10L/min
13L/min
13L/min
N.W
8.7Kgs
9Kgs
21.5Kgs
20.5Kgs
22.7Kgs
26.4Kgs
60KG
G.W
11 Kgs
11.3 Kgs
24.5Kgs
23.5Kgs
25.7Kgs
29.4Kgs
70KG
Precision
/
/
±0.3℃
±0.3℃
±0.5℃
Protection
Flow alarm
Flow alarm
Flow alarm
Flow alarm
Tank capacity
9L
6L
6L
15L
Inlet and outlet
OD 10mm barbed connector
OD 10mm barbed connector
OD 10mm barbed connector
/
/
Dimension
49 X 27 X 38cm (L X W X H)
58 X 29 X 47cm (L X W X H)
58 X 29 X 47cm (L X W X H)
67x47x89 cm
Package dimension
59 X 38 X 47cm (L X W X H)
65 X 39X 56cm (L X W X H)
65 X 39 X 56cm (L X W X H)
74x61x104 cm
suitable laser tube power
≤80W
80W-120W
120W-130W
Above 130W
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Details
The Co2 Laser industrial Chiller CW3000 CW5000 CW5200 CW6000 intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions

Co2 Laser industrial Chiller CW3000 CW5000 CW5200 CW6000 Multiple alarm functions: compressor time-delay protection, compressor over current protection, water flow alarm and over high & low temperature alarm;

With S&A Co2 Laser industrial Chiller CW3000 CW5000 CW5200 CW6000, your CO2 laser can be properly cooled. Up to 200W CO2 laser or 60W RF CO2 laser, this mini water chiller unit can offer highly reliable cooling. It has temperature stability of ±0.3°C as well as cooling capacity up to 3150W. With compact design, S&A water chiller takes up less floor space for CO2 laser cutter engraver users. Multiple choices of pumps are available and the whole chiller system conforms to CE, RoHS and REACH standards. Heater is optional to help rising water temperature quickly in winter.

Water supply inlet

Cooling fan of famous brand installed. High quality and low failure rate

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Application area
Industrial water chiller: suitable for cooling CO2 laser, YAG laser, laser diode and so on

1.industrial water Chiller for Fiber Laser Cutting Machine
2.industrial Water Chiller for UV Laser marking machine
3.industrial Water Chiller for Laser Cutting Machine
4.industrial Water Chiller for CO2 Laser Tube
5.industrial Water Chiller for CO2 Laser engraver
6.industrial Water Chiller for Co2 Laser Cutter
Packaging&Shipping





Every S&A CO2 laser chillers we deliver to our clients is well packed in durable materials that can protect the chiller from moisture and dust during the long-distance transportation so that it stays intact and in perfect condition when it arrives to the clients' places.
Recommend Products
FAQ
Q:What is the recommended water used in the industrial water chiller?
A:The ideal water should be deionised water, distilled water or purified water.
Q:How often should I change out the water?
A:Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q:What is the ideal room temperature for the chiller?
A:The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q:How to prevent my chiller from freezing?
A:For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team first.
