Home /Products/Recirculating Water Chiller/Building Material Stores LNEYA Refrigerator Supplier Ton Industrial Chiller Low Temperature 1~50

Building Material Stores LNEYA Refrigerator Supplier Ton Industrial Chiller Low Temperature 1~50

1.0 Sets
MOQ
Building Material Stores LNEYA Refrigerator Supplier Ton Industrial Chiller Low Temperature 1~50
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Biological Science, Pharmaceutical Industry
Showroom Location: United States, Pakistan, India, Russia, Thailand, South Korea, Malaysia, Australia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Type: Air-cooled
Voltage: 220V/380V 50HZ, Or Customization
Dimension(L*W*H): 45*65*120~120*220*220CM
Weight: 115 KG
Warranty: 1 Year
Power: 1.5~17KW, Or Customization
Working Temperature Range: 5℃ ~ 35℃ (optional: 5 ~ 50℃)
Key Selling Points: High Safety Level
Product Name: LNEYA Chiller Supplier 1~50 Ton Industrial Chiller Low Temperature
Temperature Range: 5℃ ~ 35℃ (optional: 5 ~ 50℃)
Cooling Capacity: 1.8~50KW
Circulation Pump: 25~250L/min 2~2.5BAR
Capacity Of Liquid Storage: 15~300L
Compressor: Well-known Brand Compressor
Evaporator: Plate Heat Exchanger
Refrigerants: R-407C
Connection Size: G1/2~G1 1/4 / DN40
Product Size: 45*65*120~120*220*220CM
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard wooden case
Supply Ability: 300 Set/Sets per Month
Product Description

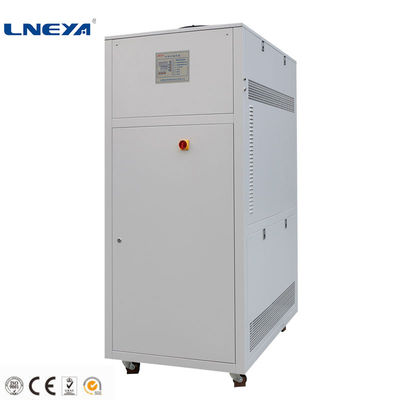

LNEYA Chiller Supplier 1~50 Ton Industrial Chiller Low Temperature
Products Description
The temperature control range of the high-precision chiller is 5℃-50℃. The equipment adopts Danfoss, Copeland and other international brand compressors, which can work continuously for 24 hours. Microcomputer temperature controller, the adjustment unit is 0.1 ℃, and it is equipped with multiple safety protection devices. The product can be widely used to cool the heat-generating parts of semiconductor manufacturing equipment, laser equipment, other industrial equipment and analysis and testing equipment.
1
Upper air outlet design
5
Liquid inlet and outlet interface
2
Touch key operation
6
Pressure gauge
3
Electrical cabinet
7
Drain port
4
Liquid level indicator
8
Power interface

Features of industrial chiller:

* Temperature of heat transfer fluid can be adjustable.
* Adopt TECUMSEH, DANFOSS, Emerson, COPELAND etc.brand compressor,stable performance and can work continuously.
* Human design, more convenient and flexible.
* Microcomputer temperature controller, temperature figures display,adjustable unit is 0.1°C, temperature range is 5°C ~ 50°C.
* Use hot gas bypass,save energy and improve the control precision.
* A variety of fault alarm (over-temperature alarm, high pressure alarm,sensor alarm, compressor overheat alarm)
* Power on delay protection, all parts are safety grounding.
* High-performance circulating pump, can guarantee 24 hours continuously running a day.

Customized products

We support customization services, pls click to consult us for details.
Product Paramenters
Model

FL-
0250
FL-
0500
FL-
0700
FL-
1000
FL-
1500
FL-
2000
FL-
2600
FL-
3500
Temperature
Range
Standard FL series temperature range 5℃～35℃ only with cooling function
Temp range
FL with H series temperature range 5℃～50℃ with cooling function as well as heating cuntion.

Temp. Control
ASET multifunctional controller, control temperature of water tank, Customizable temperature control accuracy ±0.5℃
Cooling capacity (KW)
20℃
2.5KW
5KW
7KW
10KW
15KW
20KW
26KW
35KW
10℃
1.8KW
3.6KW
5KW
7.2KW
11KW
14.5KW
18.5KW
25.5KW
Heating capacity (H series)
10℃
2.5KW
5KW
7KW
10KW
15KW
20KW
26KW
35KW
20℃
2KW
4KW
5.6KW
8KW
12KW
16KW
20KW
28KW
45℃
1KW
2KW
2.8KW
4KW
6KW
8KW
11KW
14KW
Flow and pressure
25L/min
2bar
35L/min
2.5bar
35L/min
2.5bar
50L/min
2.5bar
75L/min
2.5bar
75L/min
2.5bar
110L/min
2.5bar
200L/min
2.5bar
Interface size
G1/2
G3/4
G3/4
G3/4
G1
G1
G1 1/4
DN40
Liquid storage volume
15L
25L
40L
40L
60L
70L
100L
200L
Compressor
Mitsubishi
Emerson/Copeland
Refrigerant
R-407C
Connection Size
G1/2
G3/4
G1
G1 1/4
DN40 PN10
Dimension cm
45*65
*120
50*85
*130
55*100
*175
55*100
*175
70*100
*175
70*100
*175
80*120
*185
95*170
*205
Power max  50HZ
AC220V
1.5KW
AC220V
2.2KW
AC220V
3KW
AC380V
4KW
AC380V
5KW
AC380V
6KW
AC380V
8KW
AC380V
12KW
Weight kg
115
145
180
225
290
340
400
560
Shell Material
Cold rolled steel painting
Optional
SUS304 Material
Optional Power
220V 60HZ three-phases，440V～480V 60HZ three-phases
Our Advantages

Feature Description of Industrial Chiller:

1. The temperature of the heat transfer liquid can be adjusted;
2. It adopts international famous brand compressors such as Aspara, Danfoss, and Copeland, and has stable performance and can work continuously;
3. User-friendly design, flexible and convenient;
4. Microcomputer temperature controller, temperature digital display, adjustment unit 0.1 degree, temperature range -5 degree to 35 degrees;
5. Use hot gas bypass to save energy and improve control accuracy;
6. Multiple fault alarms (over temperature alarm, sensor alarm, high pressure alarm, compressor overheat alarm);
7. Boot delay protection; all components are safely grounded;
8. The high performance circulation pump is guaranteed to run 24 hours a day.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
