Features

Specifications

Applicable Industries: Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops, Other, Milk Tea Shop & Cafeteria

Condition: New

Ice Shape: Tube Ice

Weight: 300 KG

Warranty: 1.5 Years

Key Selling Points: Automatic

Ice Storage Capacity: Other

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: Ordinary Product

Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

Compressor Brand: Frascold, Bitzer, Copeland, Refcomp, Highly

Application: Commercial

Total Power: 4.6KW

Compressor Power: 3.7KW

Ice Temperature: -3â„ƒ

Rated Output: 1ton/24h

Refrigerant: R22/R404A

Cooling Way: Water/Air Cooling

Rated Current: 9.2A

Unit Size: 1490*900*1850mm

Supply Power: 220V/380V/415V/460V3P50/60HZ

Basic Infomation

Payment & Shipping Terms

Supply Ability: 500 Set/Sets per Month

Product Description

Products Description

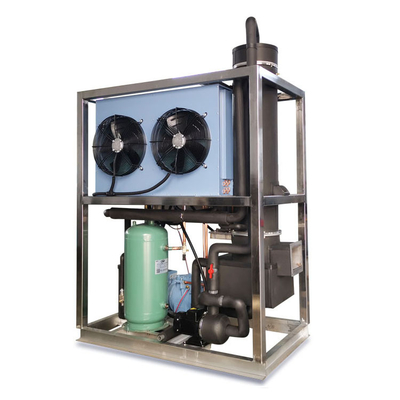

Model:ETD-T10

Ice Production: 1000kg/24h

Total Power: 4.6kw

Ice Temperature:-3℃

Compressor:

Bitzer/Frascold/Refcomp

Refrigerant: R404a/R507a/R22

Tube Size:

22/25/32/38mm

Power Supply:

220V/380V/415V/460V 3P/50hz/60hz

Warranty:18months

Features

1.Sufficient output, up to 100% or more of rated output

2.Fully automatic control, the production process does not need to be on duty

3.The output can be customized at will, up to 10 tons

4.Non-standard voltages such as 220V/415V/460V3P can be customized

5.The machine has its own ice storage and ice delivery screw

6.Environmentally friendly R404a refrigerant

7.Air-cooled cooling can be customized, default water-cooled

Model	Output	Compressor Power (kw)	Total Power (kw)	Power supply	Machine Size (mm)	Cooling way
ETD-T10	1T/24h	3.7	4.6	380V/3P/50Hz	14909001850	Air/Water Cooling
ETD-T20	2T/24h	7.3	8.3	380V/3P/50Hz	149010501850	Air/Water Cooling
ETD-T30	3T/24h	10	11.8	380V/3P/50Hz	165011501980	Air/Water Cooling
ETD-T50	5T/24h	15.7	17.35	380V/3P/50Hz	176012502200	Air/Water Cooling
ETD-T80	8T/24h	27	32	380V/3P/50Hz	293012902700	Air/Water Cooling
ETD-T100	10T/24h	33.8	40	380V/3P/50Hz	293012902950	Water/Evaporative cooling
ETD-T150	15T/24h	48.8	55.5	380V/3P/50Hz	275016803500	Water/Evaporative cooling
ETD-T200	20T/24h	61.9	70	380V/3P/50Hz	296021003550	Water/Evaporative cooling
ETD-T250	25T/24h	80	92	380V/3P/50Hz	340023503750	Water/Evaporative cooling
ETD-T300	30T/24h	102	115	380V/3P/50Hz	395023504050	Water/Evaporative cooling

Ice Detail

The following

specifications of ice can be customized

22mm

25mm

32mm

38mm

For other models,please consult with sales manager

You can choose any ice Tube size you want

The Maximum Ice Size is 38mm

Product acessories

Bitzer/Refcomp/Frascold Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories; 2, the brand effect is good, the quality is more guaranteed; 3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Good Quality Evaporator

1.The amount of liquid filling is small, which is about 40% of the inner volume of the tube;

2.It is less affected by the static pressure of the refrigerant liquid;

3.It is easy to discharge oil; ;

4.high heat transfer coefficient. The disadvantage is that the liquid supply of the refrigerant in the tube group is not easy to be uniform

Danfoss Expansion valve

1.High-quality expansion valve in refrigeration industry, higher refrigeration efficiency and lower failure rate

2.Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer

3.Select internal balance expansion valve, more stable in small refrigeration system

Reliable Condenser

1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect; 2. The end cover is detachable, which is convenient for cleaning scale; 3. Precision machining, effectively preventing leakage; 4. It is very suitable for use in environments above 35°;

PLC+ Touch screen

1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield

4.More status indications to facilitate machine maintenance

Fully equipped with Schneider Switches

1. The panel of the socket is exquisite, flat and beautiful, simple and elegant

2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness

3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Cooling Tower

Cooling Pump

Oil Separator

Dual Pressure Controller

The Electromagnetic Valve

Oil Filter

Product Technical Map

Application

Cube ice machines are located in hotels, KTV, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where ice cubes are needed to meet every customer who needs ice pellets.

The cube ice produced by the cube ice machine is crystal clear, clean and hygienic; it is efficient, safe, energy-saving, durable and environmentally friendly, and is your first choice for ice making.

Collaboration Company

Company Profile

Jiangsu Eternity Import & Export Co.,Ltd is a enterprise that Product quality and sales service.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,Jiangsu Eternity Import & Export Co.,Ltd has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.

We have our OEM factory in Jiangsu, specializing in supplying all kinds of ice equipment. Eternity integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.

Client Partner

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.

Certificate

Eternity is a modern company with technical strength and innovation ability.

FAQ

<TD rowspan="0" clas

Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
