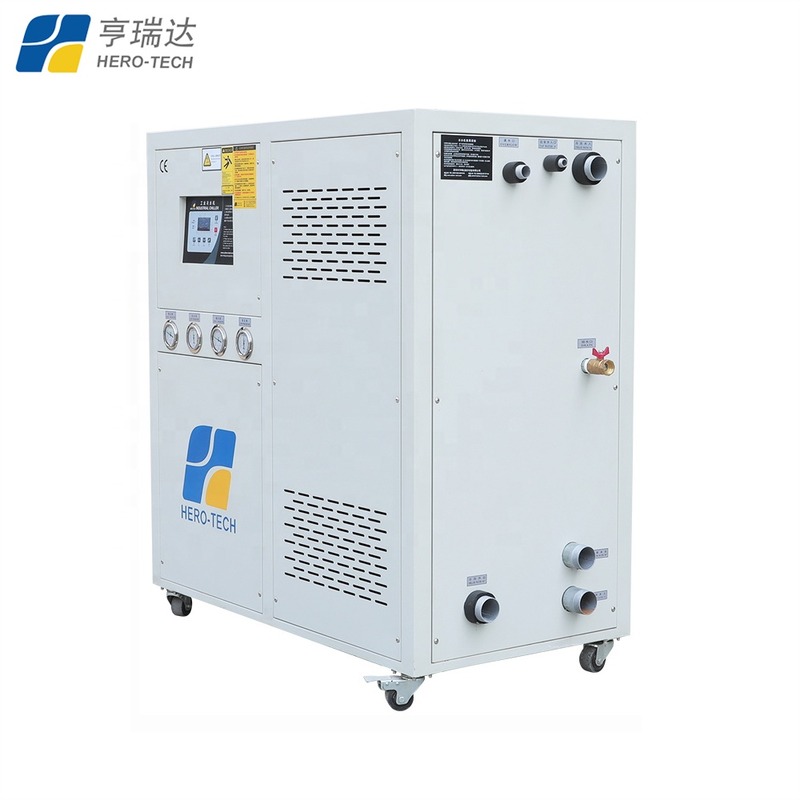

HTLT-W series low temperature industrial chiller is specially designed by HERO-TECH ,which is widely applied in pharmaceutical, chemical and bioengineering industry. The temperature is adjustable in the range of -35℃ to +5 ℃. If you have a need for reliable low-temperature cooling for your industrial application, we have the equipment you need. Our scroll chillers are currently used around the world to guarantee a vast range of processes for many leading companies. We can create custom chilling solutions adapted to your specific cooling needs and find ways to add value to your process with our reliable and efficient low-temperature scroll chillers.
HERO-TECH products are designed to help lower environmental impact with next-generation, low Global Warming Potential (GWP) refrigerants and high-efficiency operation.
Emerson expansion valve
Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.
Refrigerant: R22 charged, CFC free type R410A R407Cfor option.
Multi-protection devices ensure the chiller unit running safety. Control for set and actual temperatures and safety alarms.
3PH 380V-415 50HZ/60HZ for standard design. Different design available on request.
Removable side panels for ease of access.
Process circuit with thermal insulation.
Sight glass with low level switch.
Threaded couplings for prompt connection to the user’s plant.
Swivel wheels for easy positioning.
Refrigerant circuit with top brand semi-hermetic scroll compressor Control panel.
Complete with associated control equipment with digital microprocessor.
Compact design, easy to install and operate, convenient to clean and maintenance.
HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.
Dependable, versatile, high-efficiency cooling.
|
Model |
HTLT-5W |
|||
|
Nominal cooling capacity |
-10℃ |
KW
|
7.8 |
|
|
-20℃ |
5.0 |
|||
|
-30℃ |
2.1 |
|||
|
-35℃ |
1.3 |
|||
|
Condenser |
Type |
|
Shell and tube |
|
|
Cooling water flow |
-10℃ |
m3/h |
1.7 |
|
|
-20℃ |
0.92 |
|||
|
-30℃ |
0.49 |
|||
|
-35℃ |
0.31 |
|||
|
Pipe connection |
inch |
1 |
||
|
Evaporator |
Type |
|
Shell and tube / ss plate heat exchanger |
|
|
Chilled water volume |
-10℃ |
m3/h |
1.33 |
|
|
-20℃ |
0.71 |
|||
|
-30℃ |
0.36 |
|||
|
-35℃ |
0.22 |
|||
|
Pipe connection |
inch |
1 |
||
|
Input power |
kw |
3.55 |
||
|
Power source |
|
3PH 380V~415V 50HZ/60HZ |
||
|
Refrigerant |
Type |
|
R22/R404A |
|
|
Control |
|
Thermostatic expansion valve |
||
|
Compressor |
Type |
|
hermetic scroll(semi-hermetic piston) |
|
|
Motor Power |
KW |
3.0 |
||
|
Pump |
Power |
Kw |
0.55 |
|
|
Lift |
m |
20 |
||
|
Safety devices |
Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection |
|||
|
Dimension |
Length |
mm |
890 |
|
|
Width |
mm |
550 |
||
|
Height |
mm |
1055 |
||
|
Net weight |
KG |
175 |
||
|
The above specifications are according to the following design conditions: 1. Condensing temperature 45 ℃ 2. Volume fraction of glycol water solution 47.8% We reserve the right to modify the specifications without further notice |
||||
Medical Processing
Certain medical fabrication processes and storage requires reliable cooling to guarantee safety and effectiveness. When cooling failure isn’t an option, you need a low-temperature scroll chiller you can count on for:
Transforming various medical ingredients and compounds
Manufacturing highly sensitive medicines
Storage of medicines and human tissues for surgery
Testing of new drugs and procedures in extreme cold conditions
Many types of clothing, materials and equipment need to be tested to -35°C temperatures. Our low-temperature industrial scroll chillers can be used for a wide range of testing applications, such as:
Automotive and transport equipment verification
Fabric and cloth cold temperature resistance and protection
Plastic, rubber and metal strength at freezing temperatures
Cold temperature performance of coolants, oils and fluids
