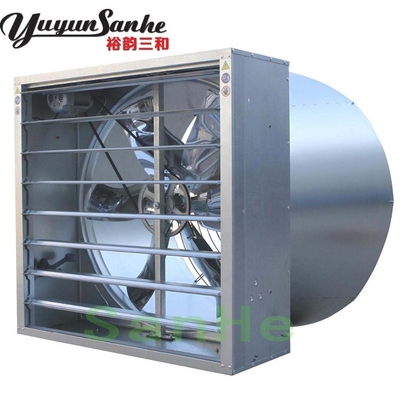

Farms Poultry Farm Air Circulation Ventilation Fan Cone Type Large Exhaust Fan with Shutter with CE Certificate

1 Set
MOQ
Farms Poultry Farm Air Circulation Ventilation Fan Cone Type Large Exhaust Fan with Shutter with CE Certificate
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1 Year
Showroom Location: None
Model Number: DJF(c)
Applicable Industries: Farms, Machinery Repair Shops, Manufacturing Plant, Building Material Shops, Construction Works
After-sales Service Provided: Online Support, Video Technical Support
Local Service Location: None
Housing: Galvanized Or SS
Blades: Krupp SS
Shutter: Galvanized Or SS
Motor: Chinese Or Siemens
Belt: Mitsuboshi
Bearing: Double Roll
Basic Infomation
Model Number: DJF(c)
Payment & Shipping Terms
Packaging Details: standard export packing corrugated cartons
Supply Ability: 10000 Set/Sets per Month
Product Description
Product Description

Product Application

DJF(c) Series Shutter Cone fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Technical Data:
Model
Drive
Blades Diameter(mm)
Blades Rotational Speed(rpm)
Motor Rotational Speed(rpm)
Air Flow (m³/h)
Input Power (W)
Noise (db)
DJF(C)-750
Direct
610
960
960
11000
370
<70
DJF(C)-900
Belt
750
630
1400
22000
370
<65
DJF(C)-1000
Belt
910
610
1400
25000
550
<65
DJF(C)-1100
Belt
1000
600
1400
32500
750
<64
DJF(C)-1220
Belt
1100
460
1400
38000
750
<64
DJF(C)-1380
Belt
1270
439
1400
44000
1100
<64

Main Features

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Detailed Images
Cone and Shutter
1.Reasonable Cone design for bigger exhaust power, Large airflow and steady air output
2.Aluminum alloy shutters for light weight and attractiveness.

Fan blades

1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:

Blade material also have galvanized sheet, aluminum alloy for option


Belt Pulley

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.

Opening System

1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

Bearing

Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.

Belt

Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Long service life, maintenance free

Safe Net

Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.

Blade Support Base

1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided

Motor

1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

Italligent Dynamic-balance Tester

Fan blades are adjusted by Intalligent dynamic-balance tester

Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Certificate
Yuyun Sanhe Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise", "Alibaba Assessed Supplier". International authority certified, Trustworthy
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Factory&Workshop
No.1 ventilation equipment manufacturer in China, equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers

Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.

Global service, Annual sales over $ 30 million

Yuyun Sanhe Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Our Service
Yuyun Sanhe has 20+ years of professional design and production experience, more than 300 efficient R & D and production team.

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.

Main Product
Yuyun Sanhe Main Products are Ventilation fan, Evaporative Cooling Pad, Evaporative Cooling Pad Production Line, Greenhouse Fan, Cow House Fan, Shutter Louver, Heater, Air Inlet, Light Filter, Winch, Pulley, Time/Temperature Controller, Laying Nest etc.
