Features

Specifications

Condition: New

Warranty: 1.5 Years

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Other

Showroom Location: United Kingdom, United States, UAE, Colombia, Japan

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Main Material: AL6063

Surface Treatment: Frarblos Oxidation

Protection Levels: IP65 (SGS Testing Report)

Function: Ventilation & Heat Dissipation, Intake Air Filtration Function

After Warranty Service: Spare Parts

Local ServiceÂ Location: United Kingdom, Italy, France, Germany, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Japan

Basic Infomation

Payment & Shipping Terms

Packaging Details: wooden box

Supply Ability: 100 Piece/Pieces per Day

Product Description

Products Description

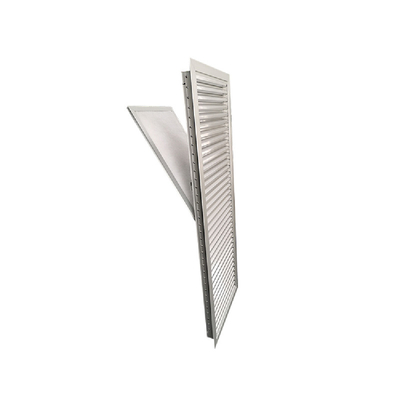

Product name	Rain proof&dust filtration integration louver/ Water proof & dust filtration integration louver/ Water proof & dust filtration device/ Water proof & dust filtration equipment
Item No.	HX2S-YT50
Material	AL6063
Surface treatment	Frarblos oxidation
Protection level	IP65 （SGS testing report）
Function	Ventilation & heat dissipation, intake air filtration function, it has the rain-proof, waterproof, snow defence, dand prevention, dust filtration and air filtration
Performance description	1、 The louver blade for the SS figurate, blades for closely linked, forced to change the direction of the inlet air to a non-straight path, after many turns of the passage from outdoor into indoor, strong resistance to the dust particles into the wind into the room; dust particles and rainwater bounce back and flow out when they hit the blades, in addition, the bottom of the louver is provided with many drainage hole,after the rainwater splashes into, the water automatically flows out of the drainage hole at the bottom. With super waterproof, snow defence, sand filtration function. 2、 Vertical or inclined direction of the louver to spray water can not drop into. At the same time, the rear end of the louver is provided with a dust filter net, it can effectively filter out the dust from the outdoor air into indoor. Ensure indoor air is clean and avoid indoor electrical equipment and related devices from dust. After the dust filter is opened, the filter cotton can be easily removed from the inner side of the filter, and the old filter cotton can be removed and replaced with a new filter cotton. 3、The dust filter net is opened by pumping and inserting, and the filter net can be removed and replaced as a whole.
Application fields	1、Used for the rooms and workshops with ventilation requirement for a long-time, container rooms. Such as especially photovoltaic containers, SVG containers and other special electrical equipment containers, EV charging pile/station and other special equipment. 2、Mainly used in SVG room, high voltage frequency converter room, photovoltaic inverter room and the air inlet of machine room in photovoltaic power station, wind farm and thermal power station； 3、Mainly used in desert areas or serious sandstorm areas and ventilation requirements of ower plant steam engine room, boiler room , control building, EV charging pile/station and others. 4、Mainly used in industrial air conditioning, industrial air condition, ventilation and purification equipment, bridge dust removal, airport, shipbuilding and other construction industries.
The order form	Customized according to user requirements, any size can be made, and provide the overall ventilation exhaust cooling solutions

1、If the room wall material is cement or brick, must tapping a frame size hole in the wall, the louver set into the hole in the wall from outside, holes are punched in the inner side of the louver to connect it with the wall, the gap between the louver window frame body and the surrounding wall can be plugged with polyurethane foam sealant or cement mortar.

2、If the installation hole is steel structure. Such as container room or cabinet box and ects. Drilling is carried out on the louver panels and on the corresponding wall. Tighten with pull rivets or self - tapping screws, It’s also possible to perforate the inside side of the louver to connect them to the wall. The gap between the louver window frame body and the box body can be sealed with sealant.

3、When installing, the louver can not be installed upside down; after upside down there will be no sand prevention and waterproof effect.

The W and H in the figure above indicate the width and height of the inside diameter dimension of the louver. The inner diameter of the louver is +60mm for the outer diameter of the louver. The user only needs to provide two data of "width (W) * height (H)". Note that the size of the installation hole should be slightly larger than the inside diameter of the louver.

The effective air inlet area (ventilation rate) of the louver is about 40%~45%，The size data can be used to calculate the area required by the louver. ；

The thickness of the blind embedded in the wall hole is 48mm, and the total thickness of the flange face is 51mm. These two dimensions are fixed, and the other dimensions can be customized according to the requirements of users

Company Profile

Zhongshan Huaxia Ventilation Equipment Co., LtdTitle goes here.

We are a high-tech enterprise integrating R & D, design, production and sales. in the fields of ventilation, heat dissipation and air filtration.

We have been investing in research and development, innovating constantly in the fields of ventilation, heat dissipation and air filtration, firmly occupying the leading position of ventilation and heat dissipation and air filtration in the fields of photovoltaic power generation, wind power generation, substation, energy storage and new energy vehicles. The company’s unified, modular and integrated innovative products have filled the technical gap in China and have become a leader in the industry. We are focuses on the ventilation, heat dissipation and dust-proof/filtering solutions in photovoltaic power generation, wind power generation, offshore wind power and other new energy fields, mainly engaged in innovative research and technology development in the fields of ventilation, heat dissipation and dust-proof/filtering technologies for photovoltaic inverters, static var generator (SVG), wind power converters, high voltage inverters and other electrical/electronic equipment, as well as energy storage, charging piles, box transformers, data communication, air conditioning and other equipment.

Our company main products include sand-proof/dust-filtering integrated shutters, waterproof/dust-filtering integrated shutters, self-hanging shutters, air-water separation filters, air filters, single flexible telescopic duct and combined flexible telescopic duct, which have outstanding performance in water prevention, dust prevention, moisture prevention and salt spray prevention; The company has a modern production plant in the industrial park, with an area of over 3,000 square meters, equipped with a full set of advanced production and processing equipment; and has more than ten years of production and manufacturing experience in the ventilation industry. Adhering to the business philosophy of “Diligence makes good achievements, honesty makes good relationship, and credit makes good business”, customer satisfaction is our biggest motivation. Welcome new and old customers to come to our company for inspection and guidance!

Why Choose Us

Product packaging

FAQ

Q: What product we produce? we are the professional in producing the ventilation aluminum louver which used for below area : * Photovoltaic Power Station * The wind Power Plant station * EV Charging Station(piles) Cabinet * Outdoor Waterproof Eletric cabinet * High Voltage Inverter Room * SVG Room * Equipment Container Box * Emergency Power Storage Room * Emergency Power Truck Q: What's our service? 1. Professional in customized fiberglass product producing, OEM&ODM accepted 2. Offer free sample(product in stock only), customer just need affording shipping cost 3. Drill, cutting, chamfer, grind and print logo process is available 4. Reliable product quality guarantee Q: Where are our Main Markets? North America/Western Europe/Eastern Asia/Mid East/Northern Europe/Domestic Market/Eastern Europe/Central America/South America/Oceania/Southern Europe/Southeast Asia Q: I am interested in your products, could I get sample for free? A: We are glad to offer FREE samples, and customers just need afford its shipping cost. Welcome to send your inquiry for FREE samples! Q: How about the Delivery time? A: 10-15days after receiving the deposit based on the MOQ. Normally, 25-30 days to finish the order for a 20ft container. And it is aboout 5-10 days if the goods are in stock. Welcome to ask for the detailed delivery time according to your order quantity! Q: How can you guarantee the product quality? A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us, Q: I'd like to know your Payment terms. A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. And L/C is acceptable too. About other payment terms, let's make a specific negotiation according to our order situation.
