| Product Name | Waterproof Ventilation flitered Alumium Louver |
| Model Name | HX1M-YT30 |
| Main Materails | Aluminum Alloy |
| Speical Production Process | Splicing process ( not soldering) |
| Outside Color | Anodizing |
| Thickness | 33mm |
| Flange Width | 26mm |
| IP grade (Water and Dust Proof) | IP54 |
| Ventilation Rate | 35% |
| LifeSpan | 30 Years |
| Quality Guarantee | 12 Months |

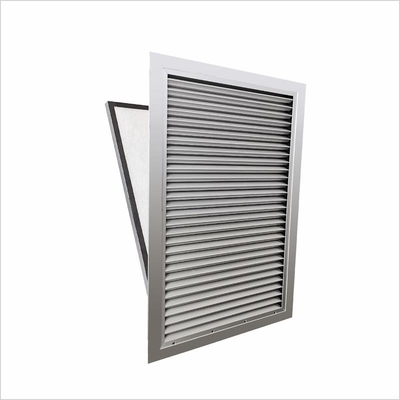

The Front half open view of our louver , The flange will be shown at the front of the door . the filter net panel could be opened and take out for replacing the filter polyester fiber .
The back half opened panel of the louver , we are the integrated ventilation filters which will be different from the normal louver . without the electric power and the blades can not ajust.
This type of Integrated Louver is special design for the EV charging station. It has the characteristics of waterproof and dust-proof . The blade is the M-shaped structure. And the blades are interlocked to arrange as the letter M lining up. And the waterproof level is IP54. this M sharp blades are suggested to used for the cabinet air inlet with the filter foam net .
This back panel of the louver used a dust-proof filter Net ,which is integrated with the louver .the filter net can be easily disassembled and maintained without any tools , it has the IP54 dust-proof level.
This Integrated louver is ultra-thin . The total thickness of the louver and filter net is only about 30mm , it fully meet the limited space of the EV charging station and the electric equipment cabinet installation and use.it make the design smart and light.
Please help refer the below introduction for the details :
After Our Ventilation Louvers arriving to the user's location , the installation guaid would be provide for the user to install .
We are the China Top Five National Goverment Power Company appointed Supplier since the year 2018 . We have the patent for This Ventilation Louver . And our products enjoied very good repuation and feedback from our goverment enterprise . Currently we are cooperated with 40% China EV charging station manufactuer .
Below Pictures is our Warehouse for the storage for the ready ventilation Louvers and we are using the international required plywood carton to ensure the safe during the delivery.
Our Services
A: we are a professional manufacture with 20 years production experience and 5 years export experience. ur products have competitive price and quality guarantee. Welcome to send your inquiry!
we are the professional in producing the ventilation aluminum louver which used for below area :
* Photovoltaic Power Station
* The wind Power Plant station
* EV Charging Station(piles) Cabinet
* Outdoor Waterproof Eletric cabinet
* High Voltage Inverter Room
* SVG Room
* Equipment Container Box
* Emergency Power Storage Room
* Emergency Power Truck
1. Professional in customized waterproof ventilation filitererd aluminum louver producing.
2. Offer free sample(no stock ), customer just need wait and affording shipping cost
3. accept the client provide their puchased materails
4. Reliable product quality guarantee
North America/Western Europe/Eastern Asia/Mid East/Northern Europe/Domestic Market/Eastern Europe/Central America/South America/Oceania/Southern Europe/Southeast Asia
A: We are glad to offer a FREE samples after our deep dicussion for the projects , and customers just need to wait and afford its shipping cost.
A: 5-7days after receiving the deposit based on the MOQ. Normally, 10-15 days to finish the order for a 20ft container. And it is aboout 5-10 days if the goods are in stock. Welcome to ask for the detailed delivery time according to your order quantity!
A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us,
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. And L/C is acceptable too. About other payment terms, let's make a specific negotiation according to our order situation.
