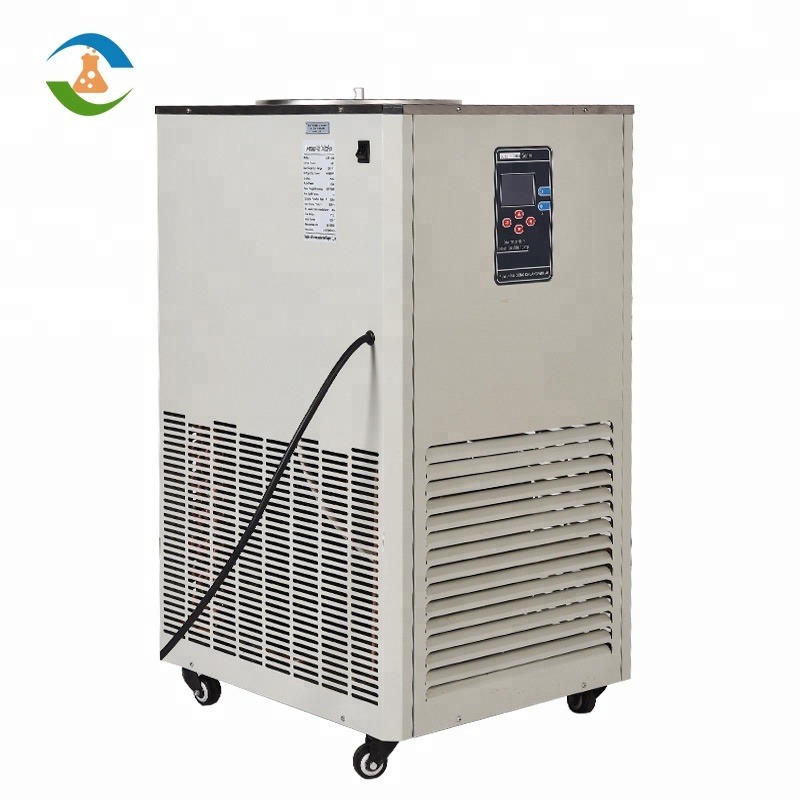

Laboratory circulating water cooling chillers (also named as refrigerated circulator , circulation chiller,water chiller or recirculating chiller) adopt mechanical refrigeration, usually are used wherever heat needs to be dissipated reliably and fast, e. g. recirculation cooler in laboratories for rotary evaporators, distillation systems or analytical devices. Its main function is providing low temperature liquid for other devices to achieve the chemical reaction under low temperature condition.
Features of Industrial high-effect water Cooled chiller systems:
1.Air-cooled and hermetically sealed compressor parts (import) with dependable quality;
2.Dedicated and high-quality relays, protective devices and capacitors of the refrigerating units;
3.Digital Read Out of temperature and microprocessor controller for temperature, easier to see;
4.Bigger cooling capacity and faster cooling speed, greatly improve the working efficiency;
5.Using this system, no need a water supply line in your lab
6.Closed cooling system,with thermostat,circulation functions, suitable for continues working
7.110/240V 60HZ is available
Details of Laboratory Circulating Water Cooling Chillers(recirculation chiller use method):
Model | DLSB-5/10 | DLSB-5/30 | DLSB-10/10 | DLSB-10/30 | |
Volume(L) | 5 | 7.49 | 13.82 | 13.82 | |
No Load Min. Temp. (℃) | -15 | -20 | -20 | -30 | |
Environment Humidity(%) | ≤70 | ≤70 | ≤70 | ≤70 | |
Power Supply(Single phase)(V/HZ) | 220/50 | 220/50 | 220/50 | 220/50 | |
Temp. Precision(℃) | ±2 | ±2 | ±2 | ±2 | |
Cooling Capacity(W) | 20℃ | - | - | - | - |
10℃ | 620 | 1150 | 1320 | 1320 | |
0℃ | 460 | 880 | 1056 | 1056 | |
-10℃ | 280 | 600 | 880 | 880 | |
-20℃ | - | 320 | 520 | 528 | |
-30℃ | - | - | - | 120 | |
-40℃ | - | - | - | - | |
-60℃ | - | - | - | - | |
-80℃ | - | - | - | - | |
-100℃ | - | - | - | - | |
-120℃ | - | - | - | - |
Technical parameters for other models of Industrial high-effect water Cooled chiller systems:
Typical Applications of Laboratory Circulating Water Cooling Chillers
* Laboratory & Biotechnology: for instruments need to be cooled, like calorimeters,density detector,viscosity meter,rotary evaporator,reactor,mass spectrometer,x-ray and etc.
* Health care and Medical: molecular pump, food, beverage and electronic reaserch fields
* Industrial files: Laser equipment,vacuum fumace of the vacuum coating equipment, biopharmaceutical mold machine,welding machine reactor.
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for normal models and 5-10 working days for customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
