Supply Polyurethane Sandwich Cold Room Temperature Controls

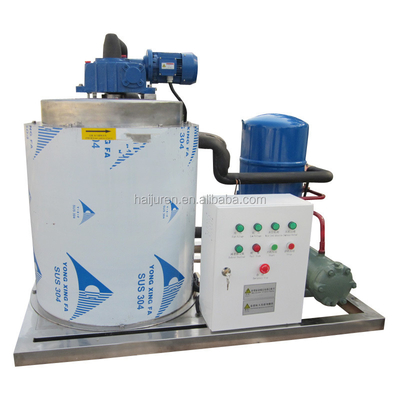

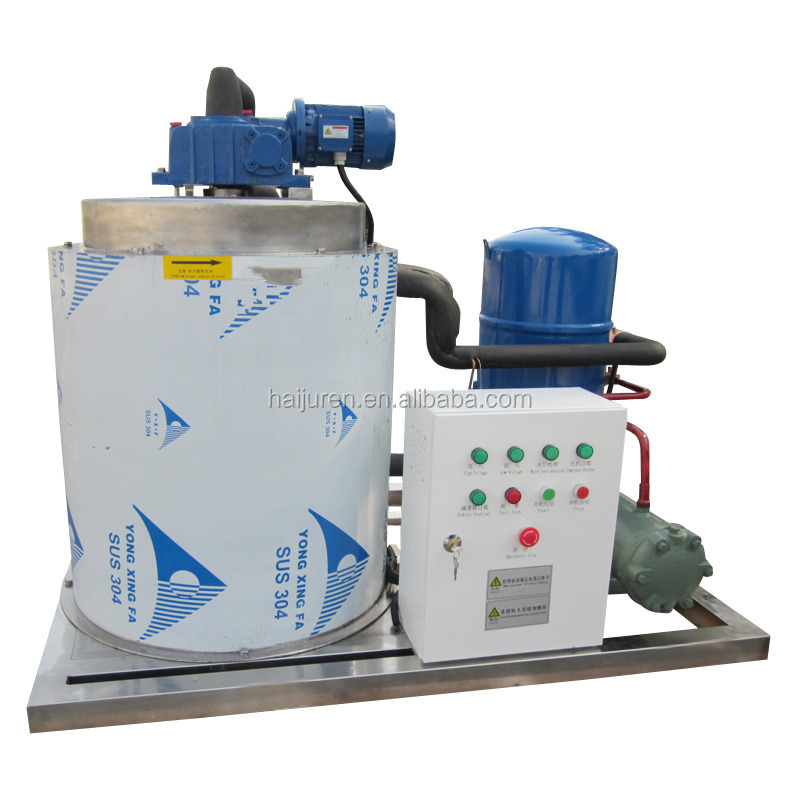

Configuration: (Industrial flake ice machine)
A.Compressor: ,Copeland,Donfoss,Maneurop,hanbell
B.Evaporator: Self-designed,produced,processing efficient ice-maker
C.Condenser: copper with AI fins for air cooling/shell and tube water cooling condenser
D.Expansion: Danfoss, Emerson
E.Refrigerant: Environmental refrigerant (R404A/R22)
F.Controller: PLC(Touch screen operation interface for option)
G.Power: 3N/380V/50Hz (it can be made according to the customers demand)
High-giants smaller flake ice machine is widely used in supermarket and shopping malls to keep vegetable,fruit and seafood product fresh.flake ice is not only can keep the referigeration products from dehydration, but also maintain the color, taste and quality, ensure keeping fresh in a long time.
Flake ice machine detailed parameters:
The seawater flake ice machine adopts the production way of using the sea water directly to make ice on the fishing boat. But the real situation restrict the normal operation of the seawater flake ice machine such as seawater corrosion,ship shaking,long-time sailing and the unpredictable weather.Through studying the world markets conditions,the climate and the sea area's differences and after repeated experiments and researches, High-Giant company developed its own flake ice machine producing technology which applicable to the large marines.The seawater flake ice machine produced by High-Giant can be applied to a variety of different models of ocean fishing vessel.
Seawater flake ice machine characteristics
1. The material of the flake ice machine is 316 stainless steel with the stainless steel spiral ice blade,which ensures itoperating steady even under hostile environment.
2. Using the ship's own power and adopts special compressor makes the seawater flake ice machine safety,energy saving and efficiency. Its life period can reach to approximately 15years.
3. The ice maker applies PLC automatic control and all-automatic monitor,no need of personal operating,greatly saved labor cost.
-------------------------------------------------------------
Standard operating condition:
1.Ambient temperature 23°C; Water temperature:15°C. The production capacities will be increase 10% when the ambient temperature and water temperature falls about 5°C.
2 Voltage: 380V/3PH/50Hz (Special voltage by confirm before quote)
3. water supply pressure: 0.1Mpa-0.3Mpa.
4. Cooling equipment working condition: evaporator temperature -23°Condenser temperature 40°C
5. Flake ice thickness::1.5-2.6mm, ice of temperature is -8°C
Plywood Case packing
1. MOQ: One set.
2. OEM Accepted: We can produce as client’s demand. ice machine
3. Good Quality: We have strict quality control system.Good reputation on the market.
4. Fast & best service Delivery: We have big discount from forwarder (Long Contract).
5. Processional Design, Self design,efficient ice maker
6. Easy operation
7. Reasonable price
Check below for more information on placing an order
|
1. Inquiry-Professional quotation. |
|
2. Confirm the price, lead time, payment term etc. |
|
3. Sales send the Proforma Invoice with company seal. |
|
4. Customer makes the payment for deposit and send us Bank receipt. |
|
5. During Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery time. |
|
6. Clients make payment for balance and Ship the goods. |
|
7. When machine on your hand and satisfied with them then order is done. |
|
8. Feedback to us about Quality, Service, Market Feedback & Suggestion. And we can do better. |
High-giants is high-tech company with unique design,producing and selling flake ice machine block ice machine and cube ice machine and cold room, all spare parts of the flake ice machine series adopt to the stainless steel or corrosion-resistant aluminum alloy material and meets the requirement of the food and processing industrial standards.
Mainly series :
Fresh water flake ice machine- 500kgs/day to 50Tons/days
Seawater flake ice machine- 500kgs/day to 50Tons/days
Marine flake ice machine- 500kgs/day to 50Tons/days
Block ice machine-1T/day to 20T/day
Cube ice machine-700kgs -1T/Days
How to make flake ice?
After the refrigeration system being to work normally, the water in water tank is pumped into the eater distribution pan by circulation pump, Drive bu the reducer, the water in the pan evenly flows down the inner wall of evaporator, the refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat bu exchanging heat with the water on the wall, As a result, the water flowing over the surface of inner evaporator wall sharply cools down to below the freezing point and freezes into ice instantaneously, parts of the water file attached onto the inner wall freezes into ice flakes, the remaining water that does not form ice flakes flows into the water pan at the bottom of evaporator and then into the water tank for recycling, when the ice on the inner wall reaches a certain thickness , ice blades are driven bu the reducer to peel ice from the inner wall, thus ice flakes form, fall into the ice storage bin at the bottom of the ice flaker and is stores for future use.
