Home /Products/Refrigeration Condensing Unit/Cold Room Cold Room Unit Compressor Cold Storage Room Frozen Food Fruit Condensing Warehouse

Cold Room Cold Room Unit Compressor Cold Storage Room Frozen Food Fruit Condensing Warehouse

1 Set
MOQ
$6,000.00(1 - 999 sets) $1,000.00(>=1000 sets)
Price
Cold Room Cold Room Unit Compressor Cold Storage Room Frozen Food Fruit Condensing Warehouse
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Home Use, Hotels, Restaurant, Retail
Weight (KG): 200
Showroom Location: Algeria, None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Engine, Motor
Type: Condenser Unit
Warranty: 1 Year
Product Name: Cold Room Freezer Compressor Refrigeration Condensing Unit
Refrigerant: R404a/R22
Cooling Type: Water-cooled/air Cooled
Voltage: 380V-440V/3Ph/50HZ-60HZ
Application: Cold Room,refrigeration Equipment
Fan Direction: Side Blow
Horse Power: 7hp
Key Words: Cold Room Compressor Unit
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden case/ carton
Supply Ability: 10 Set/Sets per Day
Product Description
Products Description

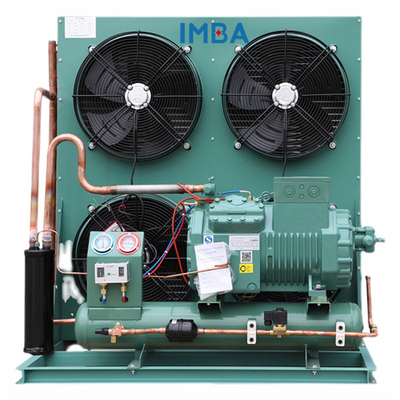

The open-type condensing unit is mainly assembled with Germany Bitzer semi-hermetic compressor. Other brand compressors brand like Refcomp, Dorin are also optional.

1. Main components are Bitzer compressor, condenser, drier filter, solenoid valve, pressure controller, high and low pressure gauge. Gas separator and oil separator are optional. Brand for all these spare parts is optional.
2. Open-type condending unit is easy to moving, installation and maintenance. 3. Pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.
4.Refrigerant: R22, R404A
5.Power supply:380V/50Hz/3phase,220V/60Hz/3phase,440V/60Hz/3 phase and other special voltage can be customzied.
Parameter for compressor
High temperature Bitzer Compressor Parameter
Model
Power(KW)
Refrigerating capacity(W)
Connection
Suction Line
Liquid Line
2HES-2
1.6
3450
ø16
ø9.52
2GES-2
1.87
4070
ø16
ø9.52
2FES-3
2.29
4980
ø16
ø9.52
2EES-3
2.63
6270
ø22
ø9.52
2DES-3
3.17
7500
ø22
ø9.52
2CES-4
3.9
9250
ø22
ø12.7
4FES-5
4.06
9800
ø22
ø12.7
4EES-6
5.21
12480
ø28
ø12.7
4DES-7
6.17
14940
ø28
ø16
4CES-9
7.72
18440
ø28
ø16
4VES-10
8.31
19860
ø28
ø16
4TES-12
9.33
24100
ø35
ø16
4PES-15
10.57
27400
ø42
ø22
4NES-20
12.45
32400
ø42
ø22
Low temperature Bitzer Compressor Parameter
Model
Power(kW)
Refrigerating capacity(W)
Connection
Suction Line
Liquid Line
4FES-3
3.11
5140
ø22
ø12.7
4EES-4
3.92
6520
ø22
ø12.7
4DES-5
4.65
7790
ø28
ø12.7
4CES-6
5.47
9310
ø28
ø16
4TES-9
6.49
11580
ø28
ø16
4PES-12
7.35
12860
ø28
ø16
4NES-14
8.85
15640
ø35
ø16
4HE-18
12.22
22050
ø42
ø22
4GE-23
14.58
25900
ø42
ø22
6HE-28
18.01
32450
ø54
ø22
6GE-34
22.4
38900
ø54
ø22
6FE-44
26.63
46350
ø54
ø28
If you don't know which model is suitable for you, you could send message to our company. We have several professional engineers to make a customized solution for you.
Design principle
For small and medium cold room, we usually choose semi-closed piston condensing unit. For large cold room, we usually choose parallel compressor unit. For blast freezer, we usually choose screw type compressor or double stage compressor. For the cooling capacity, we will design it to meet our clients’ requirement.
For some countries, in Winter the temperature is lower than minus 0°C or in Summer the temperature is more than 45°C. We will consider the climatic environment of the location, and chose suitable condenser model for customers.
Product packaging
Company Profile
Changzhou Yejun Cold Chain Technology Co., Ltd. is specialized in manufacturing air coolers/evaporators, air cooled condensers, air cooled/water cooled condensing units, cold room panels/doors to people who are interested in them. One-stop service is available at our side, that means you will get everything for whole refrigeration system.

With professional technical support, progressive production equipment, together with honesty and concentration, the refrigeration equipments are being exported to countries like the United States, Canada, UK, Ireland, Dubai, Australia, etc.

Thanks to the great support and positive feedback from customers, we has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to you!
Certifications
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory

Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.

Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.

Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.

Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.

Q6:Can we do our OEM logo?
A6:Yes,we can do OEM logo for you.

Q7:Can you do our country plug?
A7:Yes,we can do the plug according to your request without extra cost.
