Heating and cooling chiller
FEATURES
This chiller unit can offer hot water to increase the temperature or cold water to decrease the temperature according to the production demand and the temperature can be kept at the set point with variation±1℃, easy to operate, fast to increase and decrease temperature.
Original America and Japan brand compressor, featuring built-in safety protection, low noise and durability,
Original SCHNEIDER brand electric components.
Complete protection measures, intelligent fault indicator and alarm.
Application:
HTHC-A series heat and cold chillers, with dual purpose for offering hot and cold water designed by HERO-TECH, is widely used in Plastic, extrusion, polyurethane, chemical industries.
This unit can rush to the cold water temperature to make sure the high production effiency.

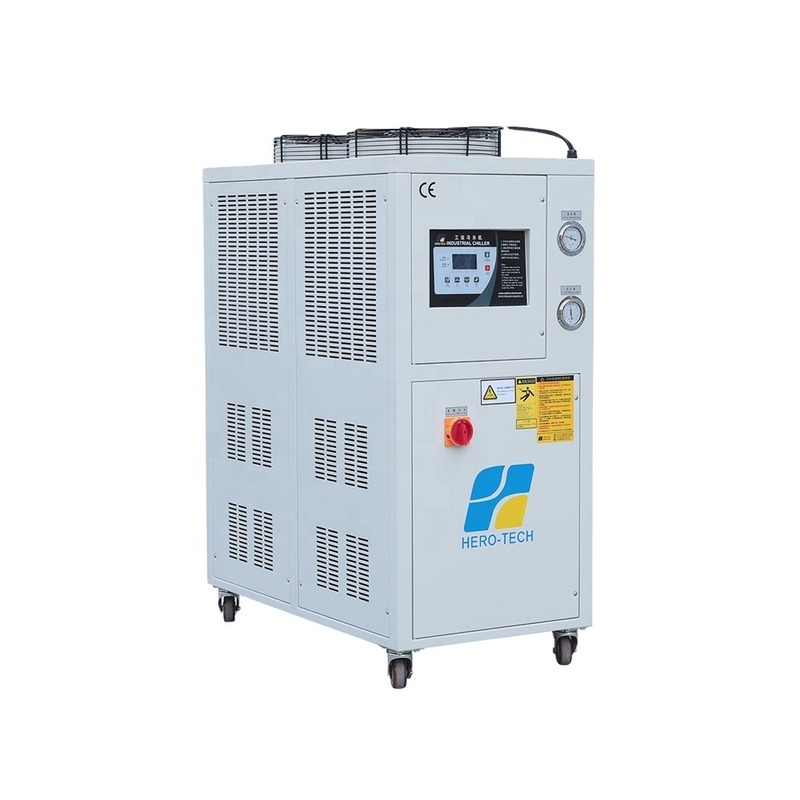

HTHC-6A Air Cooled Industrial Chiller
Technical Specifications
|
Model |
HTHC-6A |
||
|
Nominal Cooling Capacity |
Kcal/h |
14310 |
|
|
KW |
16.64 |
||
|
Max Power Consumption |
KW |
12.9 |
|
|
Power Source |
|
3PH~380V~415V/50HZ |
|
|
Heating power |
KW |
18 |
|
|
Refrigerant |
Type |
|
R22 |
|
Control |
|
Thermostatic expansion valve |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
KW |
4.31 |
|
|
Condenser |
Type |
|
finned + low noise axil fan |
|
Fan Motor |
KW |
0.18*2 |
|
|
Air Volume |
m3/h |
6000 |
|
|
Evaporator |
Type |
|
Tank with copper /shell and tube |
|
Coolant Flow |
m3/h |
2.6 |
|
|
Tank Volume |
Litre |
110 |
|
|
Inlet and Outlet Connection(BSP) |
Inch |
1 |
|
|
Pump |
Power |
KW |
0.75 |
|
Head |
m |
20 |
|
|
Unit Protection Modules |
Compressor inner, Over current, high/low pressure, over temperature, flow rate, phase sequence/phase missing, low level coolant, anti freezing, exhaust overheat. |
||
|
Dimension |
Length |
mm |
1170 |
|
Width |
mm |
610 |
|
|
Height |
mm |
1390 |
|
|
Weight |
KG |
190 |
|
NOTE: The specifications based on the following design conditions:
Chilled water supply/return temperature: 7℃/12℃
Cooling air inlet/outlet temperature: 30℃/38℃
Hot water temperature range 35C TO 60C
Cold water temperature range 5C to 35C
We reserve the right to modify the specifications without further notice.
