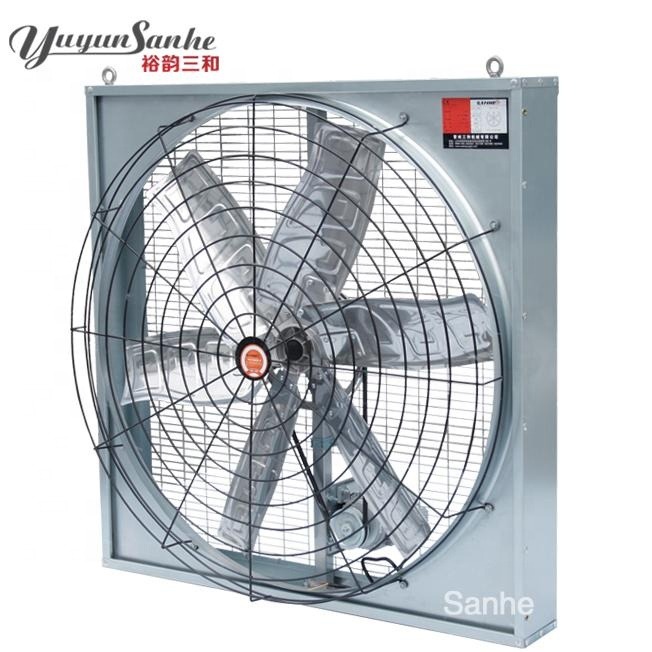

Cultivate Cow House Ventilation High Quality Exhaust Fan

1.0 Sets
MOQ
Cultivate Cow House Ventilation High Quality Exhaust Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Other
Applicable Industries: Farms, Cow House/poultry House/industry
Customized Support: OEM
Blade Material: Stainless Steel
Mounting: Ceiling Fan
Power: 0.37KW-1.5KW
Voltage: 220V/380V/415V/Customized, 220V/380V/Customized
Warranty: 1 Year
After-sales Service Provided: Online Support
Product Name: Cow House Exhaust Fan
Mounting Type: Wall-mounted
Blades: Stainless Steel
Frame: Galvanized Steel Or Stainless Steel
Motor: Siemens Motor, Chinese Motor, WEG Motor, ABB Motor
Belt: Mitsuboshi Belt
Zinc-coated Thickness: 275g/sqm
Frequency: 50HZ/60HZ
Phase: Single Phase/3phase
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard exporting paper carton
Supply Ability: 1000 Set/Sets per Week
Product Description
VR
Product Description

Product Application

DJF(b)-1Series Hanging exhaust fan is widely used in the cow house for ventilation and cooling.

Technical Data:
Model
Drive
Blades Diameter(mm)
Blades Rotational Speed(rpm)
Motor Rotational Speed(rpm)
Air Flow (m³/h)
Input Power (W)
Noise (db)
DJF(b)-1-900
Belt
750
630
1400
28000
370
<65
DJF(b)-1-1000
Belt
900
610
1400
30000
750
<70
DJF(b)-1-1100
Belt
1000
600
1400
32500
750
<70
DJF(b)-1-1220
Belt
1100
460
1400
38000
750
<70
DJF(b)-1-1380
Belt
1270
439
1400
44000
1100
<70
DJF(b)-1-1530
Belt
1400
325
1400
55800
1500
<70

Main Features

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Detailed Images

Fan blades

1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:

Blade material also have galvanized sheet, aluminum alloy for option


Belt Pulley

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.

Bearing

Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.

Belt

Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Long service life, maintenance free

Hanging Rings
Four hanging rings are added
Advantage:
Convenient to install and adjust the angle to reach excellent performance.
Round Frame
Material: Hot-dip galvanized sheet with zinc thickness of 275g/㎡
Advantage:
Extremely improves the anti-corrosion performance.

Safe Net

Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.

Blade Support Base

1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided

Motor

1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

CNC Production Line
The fan is totally improved to numerical control steamlined production line
Advantage:
High quality, reach international top standard and attractive appearance.

Italligent Dynamic-balance Tester

Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.

Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Certificate
Yuyun Sanhe Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise", "Alibaba Assessed Supplier". International authority certified, Trustworthy
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Factory&Workshop
No.1 ventilation equipment manufacturer in China, equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers

Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.

Global service, Annual sales over $ 30 million

Yuyun Sanhe Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Our Service
Yuyun Sanhe has 20+ years of professional design and production experience, more than 300 efficient R & D and production team.

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.

Main Product
Yuyun Sanhe Main Products are Ventilation fan, Evaporative Cooling Pad, Evaporative Cooling Pad Production Line, Greenhouse Fan, Cow House Fan, Shutter Louver, Heater, Feed Silo,Air Inlet, Light Filter, Winch, Pulley, Time/Temperature Controller, Laying Nest etc.
