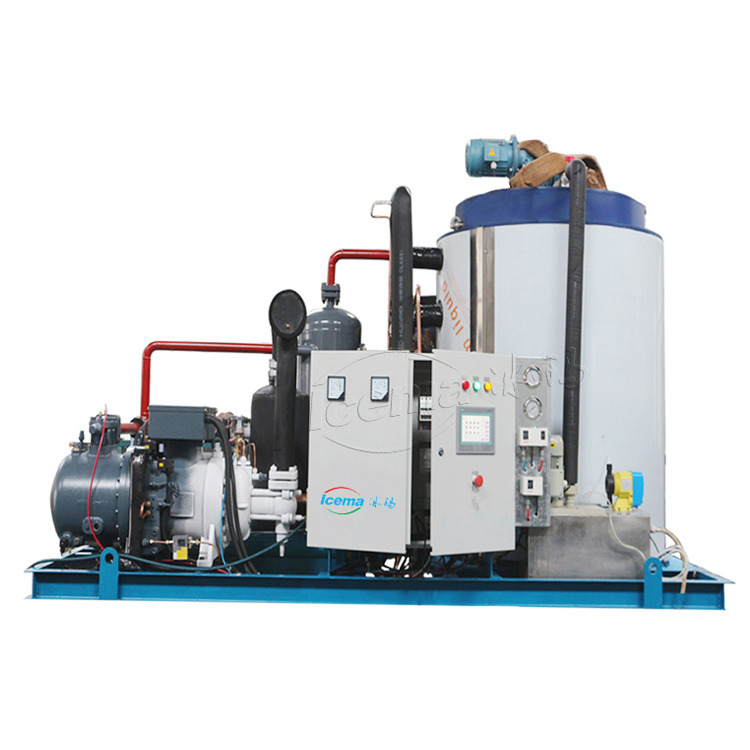

Industrial Hotels Ice Flake Make Machine Factory Direct Selling

 SHANGHAI ICEMA REFRIGERATION TECHNOLOGY CO.,LTD.

 Small  Commercial Flake Ice Maker Machine For Supermarket fresh Suitable Price Good Quality

Features and advantages of flake ice
1. Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact
Area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm
Of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Low cost of producing:
The producing of flake ice is very economical, it only requires 1.3rt refrigerating effect to make 1 ton of ice from 16c water.
3. Perfect in food cooling:
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Thoroughly mixing:
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5. Convenient for delivery:
Because the flake ice fairly dry, it will not stick with others during delivery or storage.

6.Higher refrigeration efficiency and lower loss of refrigeration capacity.
7.Automatic salt water flake ice machine adpots the latest vertical evaporator with inner helix ice cutter. In the process of ice making, the water distribution device in ice maker sprays water even on the internal surface of ice maker to frozen in a short time . After ice formed , the helix ice cutter drops down and cut ice . In this method, it makes a full use of evaporator and increase the efficiency of ice making.
8. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.
9.Simple structure and small land area . The series of ice flat has different kinds including fresh water type ,seawater type , fixed cold source type , equip cold source by customer, and ice flat machine with cold room. Customers can choose suitable machine according to site and different water quality . Compared to traditional ice making machine , it has advantage of small land area and low operation cost ..

Application

1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other seaproducts. Fishing industry is the largest application field of flake ice machine.
2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.
3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.
4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.
5. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.
6. Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.
7. Concrete cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediaof temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.

Why choose Bingma Flake Ice Machine(Equipment):
1. Excellent quality, best price.
2. Safe & reliable performance.
3. CE approval.
4. ECO-friendly
5. Long using life.
6. PATENTED H-M Control System
7. UNIQUE Strict ICEMA quality control system (ERP SYSTEM controlled)
8. High efficiency & Energy-saving with fully capacity
9. Convenient installing and operating

Quality Assurance:
1. ISO9001,CE approval
2. Component:always choose most suitable parts with good quality and famous brand to ensure our ice machine's high performance and longer lifespan.
3.  It will go through long-time ice-making performance testing and commissioning before loading to ensure its excellent performance.

1. Fast ice making, high output;
2. Power is relatively large, need to determine the power capacity;
3. Color man-machine interface, the unit running status be clear at a glance, simple operation,
    convenient maintenance;
4. Optional unit, piston or screw compressor;
5. There is no standard cold storage, non-standard order is allowed.

1. The raw materials storing and precooling of the food processing plant;
2. The lives stock precooling, fresh keeping, freezing and transporting after killing in the meat processing plant;
3. The reaction kettle of chemical plant, raw material cooling and the box-type and environment cooling;
4. Concrete cooling during mixing,concrete adding in the construction industry;

5.  Ice factory.

Specification

Standard Conditions: ambient temperature 30℃, water inlet temperature 20℃, evaporating temperature -22℃,condensing temperature 40℃.
Application Condition: water inlet temperature 0~35℃, Ambient temperature: 5~40℃
Ice Thickness: 1.5~2.2mm, Outlet ice temperature: -5℃
Refrigerant: R404A

Air cooling mode.

Above metioned parameters will be changed subjected to technical innovation without further notice.
