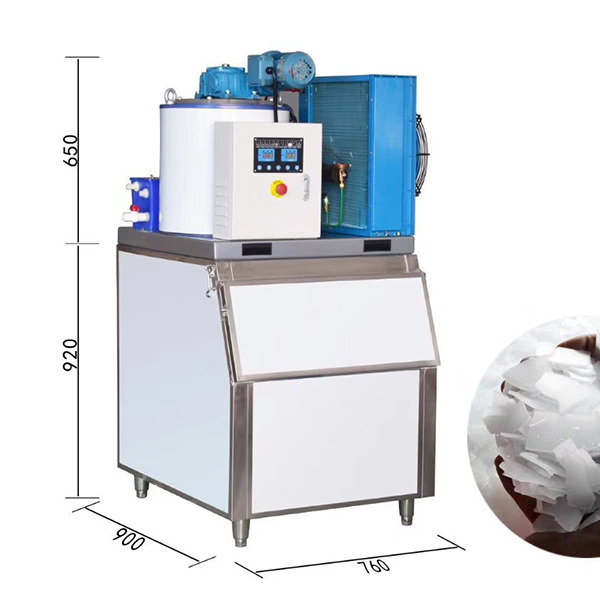

Commercial Used Snow Flake Ice Machine 300 kg Ice Flake Maker
The ice flake machine is mainly composed of compressor, expansion valve, condenser and evaporator to form a closed cycle refrigeration system.The evaporator of the ice machine is a vertical barrel structure, which is mainly composed of skates, spindles, sprinkler plates and water trays.Driven by the reducer, they rotate slowly counterclockwise, and the water enters the water distribution plate from the inlet of the ice evaporator. Through the sprinkler plate, the water is evenly sprinkled on the inner wall of the evaporator to form a water film. After the heat exchange between the water film and the refrigerant in the flow channel of the evaporator, the temperature decreases rapidly, and a thin layer of ice is formed on the inner wall of the evaporator. Under the pressure of the skate, it breaks into pieces of ice and falls into the ice storage from the mouth of the ice fall.
| Product name: Flake ice machine |
| Ice Storage Capacity: 180kg |
| Product Size:760X900X1750(mm) |
| Voltage:220V/50HZ |
| Power:1500W |
| Refigerant:R22/R404a |
| Salt water pump:no |
| Packge:850X910X1850(mm) |
