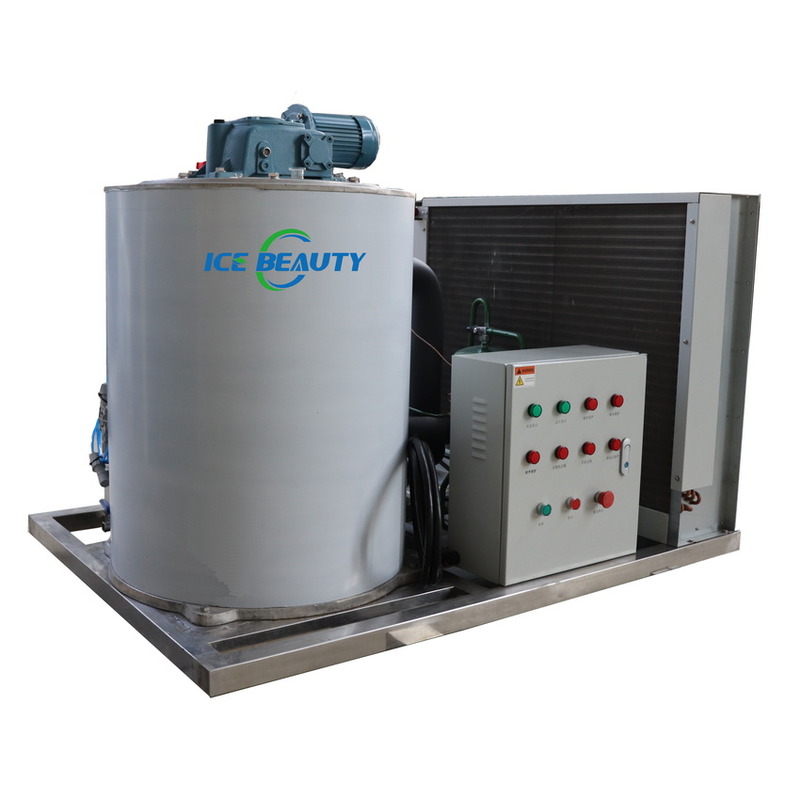

Commercial 3ton Ice Flake Maker / Ice Cream Flake Making Machine Evaporator

1 Set
MOQ
$11,000.00(1 - 9 Sets) $10,500.00(>=10 Sets)
Price
Commercial 3ton Ice Flake Maker / Ice Cream Flake Making Machine Evaporator
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
Condition: New
Ice Shape: Flake Ice
Voltage: 220v/380V
Power: 8.6
Dimension(L*W*H): 1310*970*1100
Weight: 500 KG
Warranty: 1 Year
Key Selling Points: Easy To Operate
Ice Storage Capacity: 400kg
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, Other, PLC
Application: Commercial
Product Name: Flake Ice Maker
Daily Capacity: 3000kg/24hr
Cooling Way: Air Cooling Water Cooling
Compressor: Danfoss
Ice Type: Flake Shape
Power Supply: 3P/220V-440V/50Hz/60Hz(Optional)
Refrigerant: R404a
Model: IBF030
Brand: ICEBEAUTY
Web: China-icebeauty.com
Basic Infomation
Model Number: IBF030
Payment & Shipping Terms
Packaging Details: as request
Supply Ability: 6000 Set/Sets per Year
Product Description
PRODUCT SPECIFICATIONS
FEATURES AT A GLANCE
No
Item
Data
1
Power
8.6kw
2
Production capacity
3ton/24Hour
3
Operating weight
400kg
4
Compress
Danfoss/Copeland
5
Electric
220v/380v
6
Brand name
icebeauty
7
web
china-icebeauty.com
8
More products can contact with us.
We can build as your request.
We can supply the machine from 0.3ton to 60ton capacity.
Product Overview

IBF020 Flake Ice machine

Flake ice machine:
The evaporation tank is made of stainless steel or carbon steel chromium upon the user's requirement. The evaporator with flange
connection structure, evaporation chamber with ribs spiral groove around the welded structure to enhance inner strength, and the
all thickness through strict testing to uniform wall thickness, ensure the sustainable use of the evaporator is not deformed.
The PLC controlling system can automatically control the whole progress of procuring ice with alarm of lacking water, full ice,
high/low pressure, and motor reverse rotation protection so as to guarantee the machine run stably with less faults.
The scratch-style ice dropping system inside machine ensures constant working with minimum power consumption.
The latest technology allows for highly efficient heating transfer and energy saving.

Flake ice Features:
The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.
1.Working principle:
Flake ice machine working principle is a circulating heat exchange process of the refrigerant gas in a closed loop.
Outside water source flows into the water tank, and then the water will be pumped into the water distribution plate of the flake
ice evaporator / drum by the circulating water pump.
Water distribution plate will spray the water onto the inner wall of the flake ice evaporator/drum uniformly. Ice layer will be
formed instantly on the wall under the action of the heat exchange between the water and refrigerant gas.
Driven by the reducer, the ice skate will break the ice layer slowly, the flake ice will drop into the ice storage equipment
automatically.
The water did not turn into ice will drop into the water channel at the bottom of the flake ice evaporator/drum, and flow back to
the water tank for next cycle.

2.Advantages:
Flake ice shape is flat and thin, it has the largest contact area among all types of ice which can lower down the temperature of
the substance very fast.
Flake ice is dry and crisp, no sharp edge. It will not hurt the surface of the substance.
Flake ice temperature is -8℃ ~ -5℃, thickness is 1.5mm~2.8mm.
Flake ice making speed is very fast, generally the flake ice will come out within 3 minutes after you start the machine.

3.Application:
Fishing processing, preservation and transportation.
Meat processing, preservation and transportation.
Food processing, preservation and transportation.
Fruit and vegetable preservation and transportation.
Chemistry cooling, concrete cooling and air conditioning cooling.

4.Standard daily capacity is from 200kgs to 60000kgs. Customization is available.

5.Seawater flake ice machine is usually installed and working on fishing boat, it is made of 316L stainless steel material with
strong seawater corrosion resistance. Special design of the machine can ensure it works properly under the fishing boat shaking.
The seawater from the sea can be used for making flake ice directly. Standard daily capacity is from 1000kgs to 20000kgs.
Customization is available.

We can supply Flake ice machine from 200kg/24hour to 60ton/24hour.
Ice flake machines main used area:
Flake ice machines produce fresh and clean flake ice, perfect used for the food and fishing industry
SALES AND SERVICE NETWORK
PRODUCT CONFIGURATION
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
1.what is the flake ice machine daily production? We have 1T, 3T,5T,10T up to 100T?

2.which cooling type do you prefer ? water cooled, air cooled or evaporative cooling(for Mid East)?

3.what is the ambient temperature and water temperature?

4. Which refrigerant will you use ? R22 or R404A?

5.what is the voltage, frequency and phase? as your request.

6.do you need generator or not? If yes, please click www.china-icebeauty.com for more info
