Product Pictures

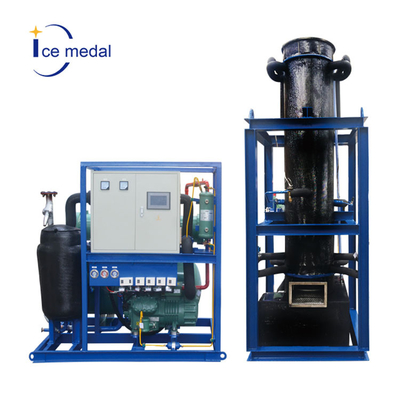

Freon System Tube Ice Machine(1-30tons daily capacity) and Ammonia System Tube Ice Machine(10-80tons daily capacity) .The tube ice machine is a mechanical device for producing tube ice. It has a hollow or solid cylinder that is widely used for beverage cooling in cafes, bars, restaurants and hotels.
Product Parameters
|
Model |
Daily Output(T/24h) |
Compressor Power |
Fan Power for Cooling Tower |
Cooling Pump Power |
Unite Size (L*W*H mm) Integrated type |
Unit N.W.(KG) |
|
|
TV10 |
1 |
4.1 kw |
0.25 kw |
1.1 kw |
1100*900*1780 |
900 |
|
|
TV20 |
2 |
7.44 kw |
0.25 kw |
1.5 kw |
1250*1000*1950 |
1200 |
|
|
TV30 |
3 |
10 kw |
0.55 kw |
1.5 kw |
1300*1100*2200 |
1500 |
|
|
TV50 |
5 |
19.9 kw |
0.55 kw |
2.2 kw |
1600*1400*2250 |
1800 |
|
|
Model |
Daily Output(T/24h) |
Compressor Power |
Fan Power for Cooling Tower |
Cooling Pump Power |
Unite Size (L*W*H mm)Split type |
Unit N.W.(KG) |
|
|
Mian Host |
Brine Tank |
||||||
|
TV100 |
10 |
27.9 kw |
1.5 kw |
4 kw |
1900*1600*1850 |
1200*1200*3390 |
3500 |
|
TV150 |
15 |
46.4 kw |
1.5 kw |
5 kw |
2700*2000*2200 |
1500*1200*4250 |
4250 |
|
TV200 |
20 |
55.7 kw |
2.2 kw |
7.5 kw |
2800*2200*2500 |
1500*1200*4700 |
6500 |
|
TV300 |
30 |
83.6 kw |
2.2 kw |
7.5 kw |
3100*2200*2500 |
1800*1500*5700 |
7200 |
|
TV400 |
40 |
111.4 kw |
2.2 kw |
11 kw |
3900*2250*2500 |
2000*1500*6800 |
8300 |
|
TV500 |
50 |
139.3 kw |
3.75 kw |
15 kw |
4500*2250*2500 |
2200*1800*7200 |
9500 |
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling. |
|||||||
Product Advantages
1. Compact Structure 3D design standardizes production, and making the structure more reasonable.
2.Top Brand Compresso,Bitzer from Germany, Copeland from America, those are the compressor brands we use for your better ice machine.
3. Special Pipe Insulation,Aluminum pipe insulation is using insulating material and aluminum surface to cover the evaporator and pipe, to increase the efficient of ice making.
4. Stainless Steel Water Pump ,The water circulating pump is stainless steel rpump, all material getting touch with water is food standard. The water is clean inside the system.
5.Danfoss Pressure Protector,The system is protected by Danfoss pressure protector to ensure the stable pressure. The products from Danfoss have better quality and accuracy.
| Integrated type 1 ton tube ice machine | Integrated type 2 ton tube ice machine | Integrated type 3 ton tube ice machine | |||
| Integrated type 5 ton tube ice machine | Split type 15 ton tube ice machine | Split type 30 ton tube ice machine |
Product Applicaton & Pictures
1.Edible tube ice have irregular lenth and with the hole in the middle.Tube ice is favored by lots of clients due to its glittering and translucent and good melting resistance, beautiful look, loong storage life, excellent expansibility.
2.Tube ice used in foods ice preservation and the retain freshness,medical appplication,KTV,banquet hall, drink modulation,western restaurant,hotel,bar,fast food restaurants,cold drinks shops,beer bouse ect.
3.Tube ice size the external ice diameter is 22mm,28mm and 35mm.The hole in the middle can be adjusted according to the ice making time,normally it is between 1mm to 10mm.
Integrated Structure Drawing
Our Project
Packaging
1. Packed in plywooden case.
2. Tube ice machine has two parts: tube ice machine and cooling tower.
3. A 20feet container can load 1-5ton tube ice machine, Above 5ton ice tube machine is split type need 40 feet container.
Certifications
Installation
1. Installing by the user:
we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2. Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
FAQ
| 1.Q:What is the ice making time of tube ice machine? | |||||||
|
A:There are three sizes of pipe ice: pipe diameter 22mm, 28mm and 35mm, pipe diameter 22mm, ice making time 18-20 minutes; The pipe diameter is 28mm, and the ice making time is 20-22 minutes; The pipe diameter is 35mm, and the ice making time is 22-25mm minutes.
|
|||||||
| 2.Q:What brand does the compressor use? | |||||||
|
A:It mainly adopts two brands: German Bezier compressor and American Valley wheel. When the voltage is 220V / 3P / 60Hz, the compressor of American Valley wheel is usually used; In other cases, the compressor of German bizel is generally used.
|
|||||||
| 3.Q:How to transport and install equipment? | |||||||
| A:After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy. | |||||||
|
we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
|
|||||||
| 4,Q:What is the price, what is the daily maintenance, and does it need to be looked after? | |||||||
| A:The prices of various models are different. Please consult the salesman for details. Keep the unit clean and sanitary, and clean the scale of water tank and evaporator from time to time. Check whether the apron pipe of the apron is blocked. There are still many details to pay attention to we will provide the operation manual. |
