Warehouse 110V 220V 380V High Speed ​​Explosion Proof Exhaust Fan

10 pieces
MOQ
Warehouse 110V 220V 380V High Speed ​​Explosion Proof Exhaust Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Other
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Construction Works , Energy & Mining, Food & Beverage Shops
Customized Support: OEM
Blade Material: Aluminum
Mounting: Wall Fan
Power: 1200w
Voltage: 220v/380v
Warranty: 1 Year
After-sales Service Provided: Online Support
Product Name: Explosion Proof Exhaust Fan
Application: Warehouse
Fan Diameter: 300mm
Motor: Chinese Motor
Usage: Ventilator Outlet
Material: Aluminum
Speed: 1450r
Electric Power Consumption: 1200w
Installation: Wall Mounted Installation
Basic Infomation
Payment & Shipping Terms
Packaging Details: Plug and socket will be packed in a box. 10 boxes will be packed in a carton.
Product Description

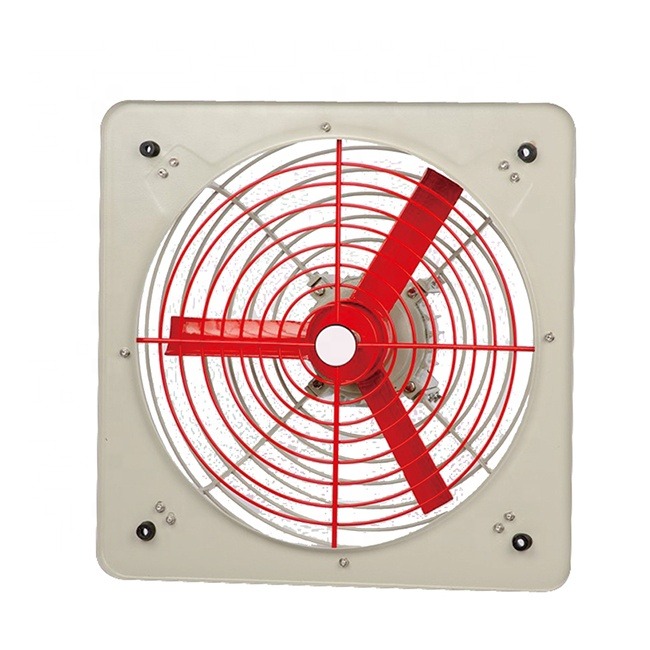

Explosion proof exhaust fan
Products Description


Application:

1. The Explosion-proof exhaust fan is convenient and easy to install.
It is made of metal aluminum and sprayed metal. Color and LOGO can be customized.

2. The explosion-proof motor is installed, the explosion-proof grade is Ex d IIB T4 Gb, and the waterproof and dustproof grade is IP65.
It can be used in the flammable and explosive atmosphere and dust environment of Zone 1&2, Zone 21&22.

3. Housing: copper free aluminium (AlSi12) with epoxy powdered coated (RAL7035)
Exterior: stainless steel
Globe: tempered glass
Gasket: Silicon rubber

4. The number of fan blades can be customized, either 3 or 4.r 120°
instant on crisp white light output High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications

Features:

1. Explosion-proof ceiling fan consists of Ex-motor, blades and cyli-nder etc.

2. Air duct of explosion-proof axial flow fan is formed by welding of quality steel plate, and the fan blades are cast in aluminum
alloy and with high voltage static plastic-sprayed surface.
3. Aesthetic appearance, integrate ong-body assemble frame, safe and secure, with damping device and low-operating noise.
4. Conduit wiring.

Technical Parameters:

Implementing the standard: GB3836.1-2000, GB3836.2-2000, 1EC60079
Explosion-proof mark: Exd Il BT4
Rotation speed: 1450 r/min
Inlet's dpec: G3/4
Cbale's spec: 9mm~14mm

Model
BAG-300
BAG-400
BAG-500
BAG-600
Power(W)
120
180
250
750
Louver grille
40
52
65
78
Blade diameter(mm)
300
400
500
600
Air volume(m3/h)
2000
2400
4900
9500
Rotating speed(r/min)
1450
1450
1450
1450
Details Images
Application

Applications


1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Recommend Products
Product packaging
Company Profile
We are a professional LED lighting manufacturer and founded in 2011. Specialized in explosion proof led lights, switches, buttons, exhuast fan and so on.
There are 30,00 square meters of factory buildings. With over 10 years of lighting experience, profound industry knowledge in the field of the explosion proof light, appliances etc.

Certifications
FAQ
1. Can I have a sample order for light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 10-15days for order quantity

3. Do you have any MOQ limit for light order?
A: Low MOQ, 1pc for sample checking is available

4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

5. Can you accept put my logo on light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution including re-call according to real situation.
