Features

Specifications

Applicable Industries: Hotels, Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction WorksÂ , Food & Beverage Shops, Other

Condition: New

Ice Shape: Flake Ice

Voltage: 220V/380V 3P 50HZ/60HZ (customizable)

Power: 17.8KW

Dimension(L*W*H): 1750*1550*1610MM

Weight: 765 KG

Warranty: 1.5 Years

Key Selling Points: High Productivity

Ice Storage Capacity: Custom Ice Storage

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product 2022

Warranty Of Core Components: 1.5 Years

Core Components: Motor, Other, Pump, PLC, Dry Filter, Expansion Valve, Compressor

Compressor Brand: Other, Frascold, Bitzer, Copeland, SECOP, HIGHLY, Refcomp, Hanbell

Application: Industrial/Commercial

Ice Thickness: 1.5-2.5mm

Ice Temperature: -11â„ƒ

Cooling Capacity: 30kw

Rated Current: 35.7A

Compressor Brand: Danfoss

Compressor Power: 14.5kw

Refrigerant: R22/R404A

Condensing Method: Air Cooling

After-sale Service: Provide

Certification: CE/ISO

Basic Infomation

Certification: CE/ISO

Payment & Shipping Terms

Packaging Details: wooden case

Supply Ability: 3000 Set/Sets per Month

Product Description

Machine support Customization ,18-month Warranty and Permanent Technical Support

Products Description

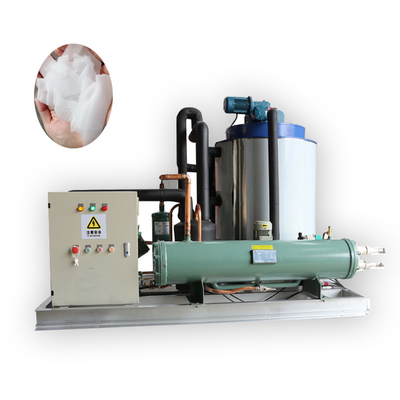

Model:ETD-F50

Ice Production: 5000kg/24h

Total Power: 23.12kw

Ice Storage:Custom ice storage

Compressor:

Danfoss/Frascold/Refcomp

Refrigerant: R404a/R507a/R22

Net Weight:765kg

Power Supply:

220V/380V/415V/460V 3P/50hz/60hz

Warranty:18months

Features

1. Flake Ice: Dry, pure, powderless, not easy to block, flake ice thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

2. Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components.

3. Evaporator drum: Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running
at the lowest power consumption.

Model	Output	Total Power (kw)	Power supply	Machine Size (mm)	Cooling way	Ice Storage
ETD-F03	300kg/24h	1.76	220V/1P/50Hz	800780655	Air Cooling	100kg
ETD-F05	500kg/24h	2.69	380V/3P/50Hz	1310890805	Air Cooling	300kg
ETD-F10	1T/24h	4.37	380V/3P/50Hz	1220900905	Air Cooling	400kg
ETD-F15	1.5T/24h	7.08	380V/3P/50Hz	1310970985	Air Cooling	400kg
ETD-F20	2T/24h	8.6	380V/3P/50Hz	150010951050	Air Cooling	500kg
ETD-F25	2.5T/24h	9.1	380V/3P/50Hz	150010951200	Air Cooling	Customized
ETD-F30	3T/24h	14.66	380V/3P/50Hz	175011901200	Air Cooling
ETD-F50	5T/24h	23.12	380V/3P/50Hz	175015501610	Water Cooling
ETD-F80	8T/24h	31.5	380V/3P/50Hz	253018301695	Water Cooling
ETD-F100	10T/24h	45.5	380V/3P/50Hz	253018301835	Water Cooling
ETD-F150	15T/24h	64	380V/3P/50Hz	310020901865	Water Cooling
ETD-F200	20T/24h	75.8	380V/3P/50Hz	369520902235	Water Cooling
ETD-F250	25T/24h	97.8	380V/3P/50Hz	369520902485	Water Cooling
ETD-F300	30T/24h	115.7	380V/3P/50Hz	388021202595	Water Cooling
ETD-F350	35T/24h	135	380V/3P/50Hz	410022002600	Water Cooling
ETD-F400	40T/24h	154	380V/3P/50Hz	420023002700	Water Cooling

Ice Detail

Ice Thickness :1.5-2.5 mm

Ice Temperature:-11℃

Ice Shape:Flake Ice

Product acessories

Copeland-USA Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories; 2, the brand effect is good, the quality is more guaranteed; 3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Main shaft

1.High-quality in refrigeration industry, higher refrigeration efficiency and lower failure rate

2.Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer

SUS304 Evaporator

1.Use stainless steel material for good grade

2. The style of inside machine ensures constant running at the lowest power
consumption

3.It is easy to discharge oil; High heat transfer efficiency

Reliable Ice Storage

1.According to the output of the flake ice machine, the size of the ice storage can be customized

2. Internal material keeps flake ice from melting for a long time

3.Cold room can also be customized, if you need, please contact our sales manager

Fully equipped with Schneider Switches

1. The panel of the socket is exquisite, flat and beautiful, simple and elegant

2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness

3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Cooling Tower

Cooling Pump

Pressure controller

Condensing fan

Solenoid valve

Dry Filter

Product Technical Map

Application

Cube ice machines are located in hotels, KTV, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where ice cubes are needed to meet every customer who needs ice pellets.

The cube ice produced by the cube ice machine is crystal clear, clean and hygienic; it is efficient, safe, energy-saving, durable and environmentally friendly, and is your first choice for ice making.

Collaboration Company

Company Profile

Jiangsu Eternity Import & Export Co.,Ltd is a enterprise that Product quality and sales service.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,Jiangsu Eternity Import & Export Co.,Ltd has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.

We have our OEM factory in Jiangsu, specializing in supplying all kinds of ice equipment. Eternity integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.

Client Partner

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.

Certificate

Eternity is a modern company with technical strength and innovation ability.

FAQ

Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?							<DIV class="magic-111"
