Home /Products/Air Inlet Louver/Hotels 305mm 1830mm Flow Honeycomb Cooling Tower PVC Counter Fill

Hotels 305mm 1830mm Flow Honeycomb Cooling Tower PVC Counter Fill

300 Sheets
MOQ
$0.98(300 - 2999 Sheets) $0.65(3000 - 19999 Sheets) $0.43(>=20000 Sheets)
Price
Hotels 305mm 1830mm Flow Honeycomb Cooling Tower PVC Counter Fill
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PVC Sheet
Condition: New
Cooling Type: Cross Flow
Material: PVC
Voltage: NO
Power: NO
Dimension(L*W*H): Width 915mm, 1220mm, Length Random
Weight: 0.6 KG
Warranty: NO
Key Selling Points: Competitive Price
Item: 305mm 1830mm Counter Flow Honeycomb Cooling Tower PVC Fill
Thickness: 0.25mm-0.35mm
Color: Black, Grey, White
Width: 310mm, 610mm
Length: 1000mm, 1200mm, 1830mm, 2400mm
Package: Wooden Pallet
Sheet Spacing: 19mm
Flute Angle: 30°
Sample: Freely
Basic Infomation
Payment & Shipping Terms
Packaging Details: honeycomb cooling tower PVC fill will be packed in carton.
Supply Ability: 2000 Sheet/Sheets per Day quick delivery of honeycomb cooling tower PVC fill
Product Description
Product Description

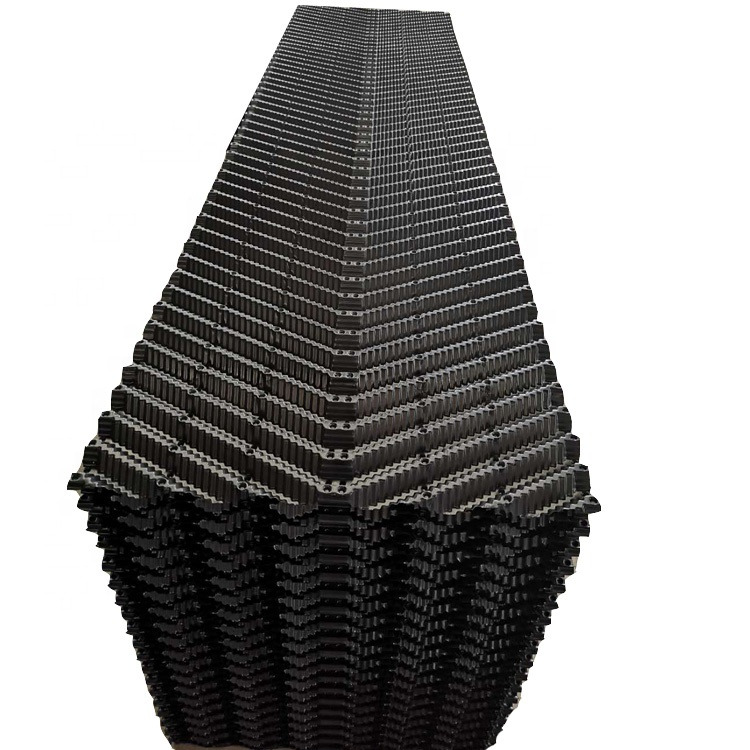

305mm 1830mm counter flow honeycomb cooling tower PVC fill

The thickness is 0.25mm-0.35mm; the width is 150mm,305mm,610mm; the length is 1200mm, 1800mm, 2000mm, 2400mm; the pitch distance is 12mm,15mm,19mm and 25mm. The 19mm is normal size. It was also called CF1900,CF1200. that means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly. Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the CF1900 fill which make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
Specification

305mm 1830mm counter flow honeycomb cooling tower PVC fill

OW cooling tower fill belong to counter flow cooling tower fill which are glued together to be a block and placed full of the
middle bottom in tower.
Feature：
1. Greater cooling capacity in a given space
2.Low-clog designs available
3.Available in bottom supported or hanging designs
4.FM approval available
5. Crossflow and counterflow designs
6. Integral louvers and eliminators available in crossflow design.
7.High-temperature designs availableigle-piece, full-height counterflow designs available
Item
Cross flow cooling tower filling material
Material
PVC
Thickness
0.25mm-0.35mm
Sheet space
12mm, 15mm, 19mm
Specification
1200mm, 1800mm, 2000mm, 2400mm
Packing & Delivery
Packing: Pallet with Plastic film packaging. Delivery: Within 15 days after receiving advanced payment.
