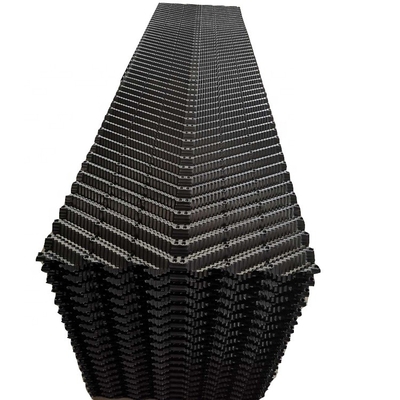

The role ofinclined wave thermoforming cooling tower film pvc fill in the cooling tower is to increase the heat dissipation and prolong cooling water retention time, increase the heat transfer area, increase the heat transfer.There are two type material of cooling tower filler is PVC PP .
The thickness is 0.25mm-0.35mm; the width is 150mm,305mm,610mm; the length is 1200mm, 1800mm, 2000mm, 2400mm; the pitch distance is 12mm,15mm,19mm and 25mm. The 19mm is normal size. It was also called CF1900,CF1200. that means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly. Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the CF1900 fill which make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
