Factory supply 65mm height Air Inlet Louver cooling tower spare eliminator

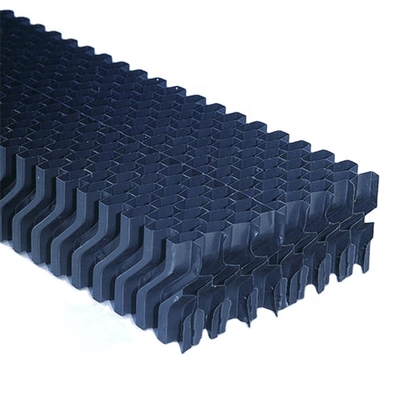

Basic introduction of Air Inlet Louver
Air Inlet Louvers improve air flow into the cooling tower, keep out debris, eliminate water splash-out (which can cause icing, near-site water damage, and costly water and water treatment chemical loss), restrict the amount of sunlight into the cooling tower (to impede algae growth), reduce noise from the tower, and improve the tower's appearance.
Material : Air intake louvers are constructed of UV-stabilized PVC. This compound has outstanding resistance to weather exposure and is nearly impervious to chemical degradation by alkalis, acids, greases, fats, oils, and biological attacks. It also has an excellent fire rating due to its self-extinguishing characteristics and meets or exceeds Cooling Technology Institute Standard 136. We also have PP and CPVC material which can meet the water high temperature requirement.
The Features of Air Inlet Louver
• Significantly block sunlight (70:1 light reduction) to reduce algae growth on interior surfaces of the cooling tower system, thus reducing the cost of algae-removal chemicals and labor.
• Reduces noise leaving the tower through the louver modules by approximately three decibels.
• Achieves very low pressure drop results.
• Pre-assembled modules available in a variety of lengths.
• Optional Assembly frames made of extruded PVC available for easy installation and access for cleaning and maintenance (mounting flanges available on 1, 2, or all 4 sides).
• Rigid, UV-stabilized PVC meets Cooling Technology Institute Standard 136.
The Specifications of Air Inlet Louver
| Sheet Thickness | Sheet Spacing | Dry Weight | Module Dimension |
| 0.3-0.6mm | 25.4mm | 4.6kg/m2 |
Height:65mm/130mm/150mm Length:Any length Width:63.5mm or other requirement |
Air Inlet Louver Pressure Drop Curve
The Application of Air Inlet Louver
Inlet louvers are used in a wide variety of new and retrofit applications, including air inlets for both package and field-erected counterflow and straight-sided crossflow towers, fresh air make-up systems, air pollution control scrubbers, and VOC strippers.
