Cross Fluted Fills improve water distribution by splitting the water stream as it descends through the fill pack. The CF1200 MA splits the water stream 10 times in a 11.8” (300 mm) vertical path. High thermal performance (high KaV/L) and low pressure drop are simultaneously achieved through engineered flute/microstructure design and the highest manufacturing standards.
Cooling tower fill media Features and Benefits:
• Bevel Tips promotes drainage at fill pack interfaces. Note: Packs are always installed with Bevel Tips at bottom of pack.
• Engineered microstructure for improved water distribution and thermal mixing
• High thermal performance
• Improved water distribution
• Proprietary edge trim that directs water to both sides of sheet
• Material meets Cooling Tower Institute (CTI) Standard 136
• Available in PVC
pvc fill media Applications
The CF1200MA is for use in package counterflow towers (HVAC and light industrial applications) and as a distribution pad in 3.9 " and 5.9 " depths. Water quality must be "good to very good". Distribution pads will be supplied as a Solvent Bonded product.
Filter media Product Dimensions
| SURFACE AREA | SHEET SPACING | FLUTE ANGLE | SHEETS PER FT. | MEDIA PACK SIZES: Depth (D), Width (W), Length (L) |
||
| Minimum | Maximum | Standard | ||||
| 69 ft2/ft3 (226 m2/m3) |
12 mm | 30° | 26 | D: 3.9 in (100 mm) W: 6 in (153 mm) L: 1 ft (305 mm) |
D: 11.8 in (300 mm) W: 12 in (305 mm) L: 10 ft (3048 mm) |
D: 11.8 in (300 mm) W: 12 in (305 mm) L: 4 ft (1220 mm), 6 ft (1829 mm), 8 ft (2439 mm) or 10 ft (3048 mm) |
Product Weights
| NOMINAL GAUGE | DRY WEIGHT | ||
| mils | mm | lbs/ft3 | kg/m3 |
| 8 | 0.20 | 2.5 | 38.4 |
| 10 | 0.25 | 2.9 | 44.8 |
Our sheet thicknesses are quoted in final gauge (as measured in field) of .008” (.203 mm), .010” (.254 mm), or your specific requirement. All our fill products are available in PVC and are UV stabilized. The PVC compounds used in fills have outstanding resistance to weather exposure and are nearly impervious to chemical degradation by alkali, acids, greases, fats, oils, and biological attack. Our PVC has excellent fire rating due to its self-extinguishing characteristics, and meets or exceeds Cooling Tower Institute Standard 136.
Production Line for Fluted Cooling Tower Fill:

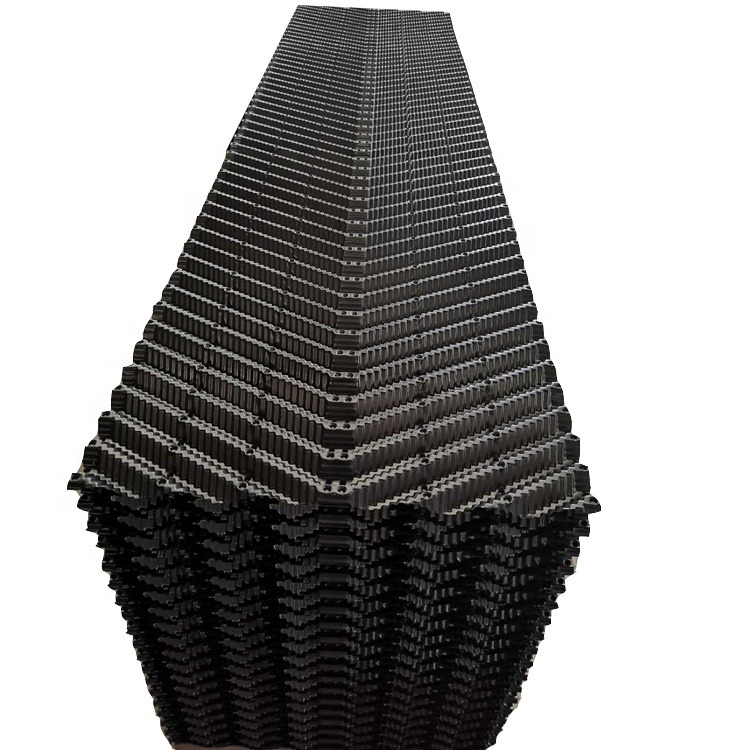

SINTA Cross Fluted Fills pictures:
SINTA Cooling tower fill media package:
SINTA PVC fill media application:
Other Brand cooling tower fill for option:(www.sintafrp.com);
Hebei Sinta FRP Product Co., Ltd is a professional manufacturer of cooling tower fill, drift eliminator, air inlet louvers, nozzles and other cooling tower accessories , we produce serious types cooling tower fill: counterflow film fill and crossflow film fill. Cooling tower fills for brand towers .Our filler materials are: PVC, PP, CPVC. There three types can meet water's high temperature.
Any demand, welcome for your enquiry!
