Home /Products/Recirculating Water Chiller/Factory West Air WTCH-2006 7L Recirculating Chiller Machine With Competitive Price

Factory West Air WTCH-2006 7L Recirculating Chiller Machine With Competitive Price

1 Piece
MOQ
Factory West Air WTCH-2006 7L Recirculating Chiller Machine With Competitive Price
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant
Condition: New
Type: Water-cooled
Voltage: 110V 60Hz Single Phase
Dimension(L*W*H): 12 X 15.5 X 26"
Weight: 65 Lbs
Warranty: 1 Year
Power: 1100 Watts
Certification: Ce
After-sales Service Provided: Online Support
Compressor: Made In Germany
Refrigerant: R404A (190g)
Cooling Capacity: 1100w At 0°C
Heating Capacity: 1100 Watts
Circulating Pump: 20 Liters Per Minute, Adjustable
Lift: 5meters
Chamber Dimensions (LxWxH): 8 X 10 X 5.5"
Controller: PID Controller With LCD 7" TFT Touch Screen
Temperature Range: -20 °C To 100 °C
Working Condition: -15°C ~ 25°C
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: Standard export package
Supply Ability: 100 Piece/Pieces per Month
Product Description
Product Introduction

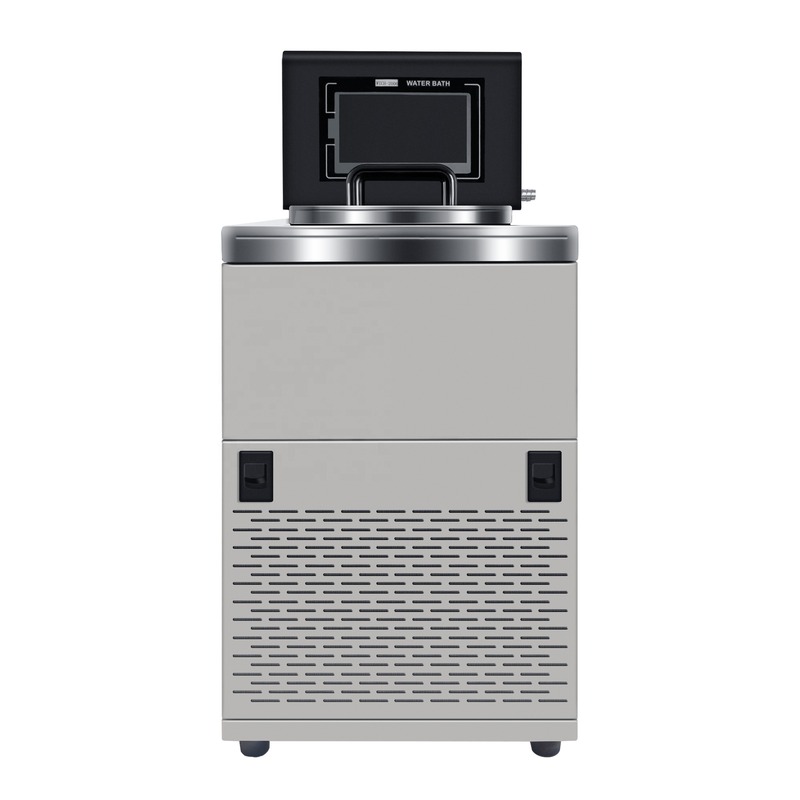

West Tune WTCH-2006 7L Recirculating Chiller

West Tune WTCH-2006 recirculating chiller is an ideal model for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Features
Powerful cooling capacity 550w at -20°C

Pump flow max. 20 liters/min

7" TFT touch screen controller

No dry ice or liquid nitrogen needed

ANSI standard all stainless steel reservoir

All steel construction for durability

Plug and play, no assembly required
Specifications
Voltage
110V 60Hz Single Phase
Compressor
Danfoss (made in Germany)
Refrigerant
R404A (190g)
Cooling capacity
1100w at 0°C
Heating capacity
1100 watts
Circulating pump
20 liters per minute, adjustable
Lift
5meters
Chamber Dimensions (LxWxH)
8 x 10 x 5.5
Chamber Material
Temperature range
-20 °C to 100 °C
Temperature accuracy
±2 °C
Working condition
-15°C ~ 25°C
Inlet port
3/8 hose barb
Drain port
Dimensions (LxWxH)
12 x 15.5 x 26"
Weight
65 Lbs
Packing List
